Product Description

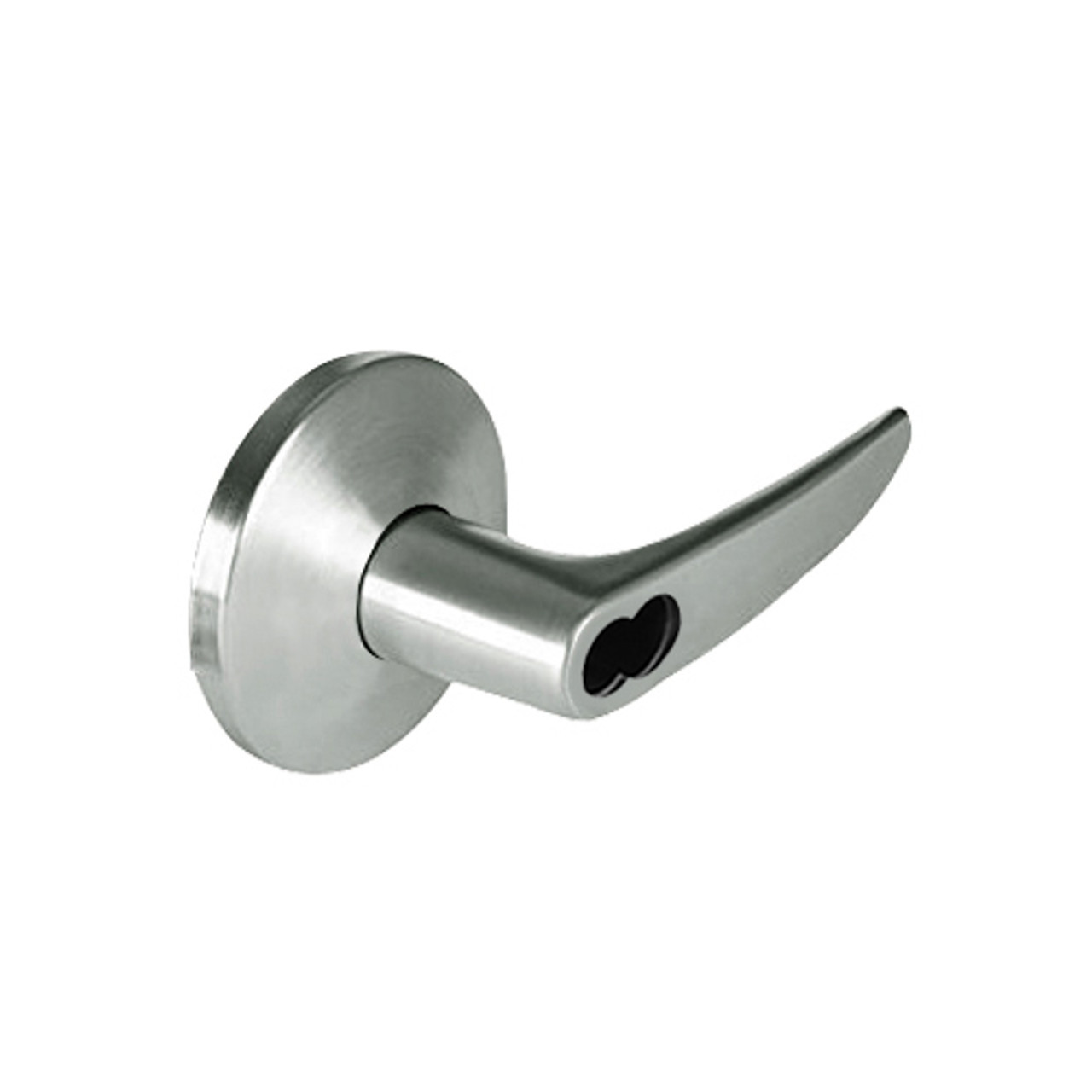

9K37XR16LSTK619LM Best 9K Series Special Function Cylindrical Lever Locks with Curved without Return Lever Design Accept 7 Pin Best Core in Satin Nickel Finish
The Best 9K37XR16LSTK619LM series is one of the toughest heavy-duty cylindrical locks on the market with the proven Grade 1 security. The 9K series is ideal for retrofit and new construction alike. The Best 9K series are listed by the BHMA for A156.2, Series 4000, Grade 1. This series is simple, safe and dependable protection.

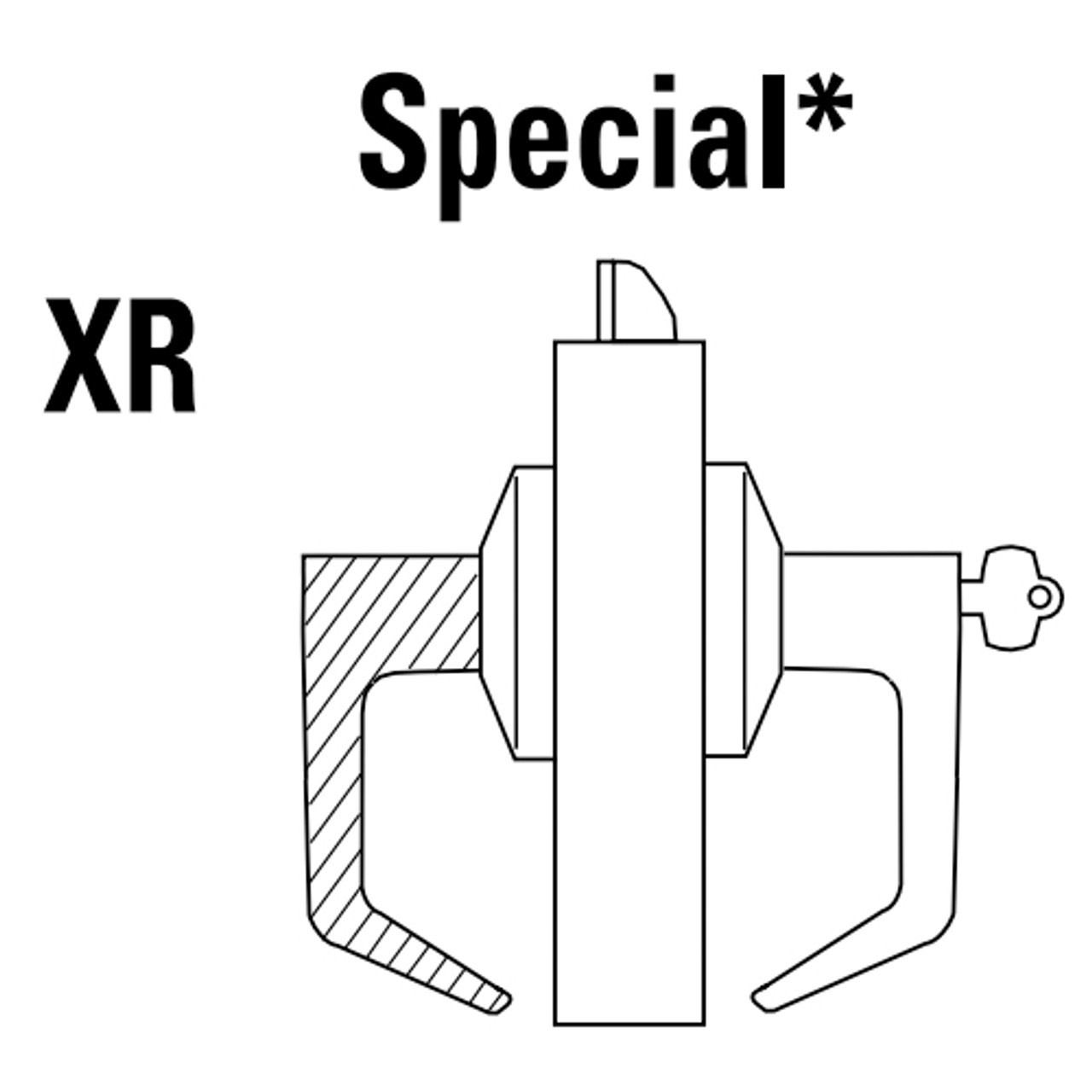

Special Function Lock: Latch operated by turning the key in the inside lever or rotating the inside lever when not locked by key; Outside lever is always fixed; Inside lever is locked and unlocked by turning the key in the inside lever.
Features and Benefits:
- Satin Nickel finish
- Backset: 2-3/4" standard
- Handing: Non Handed
- Core is not included
- Single cylinder function
- Cylinder: 7-Pin housing; accepts all BEST SFIC cores
- Door thickness: Available for 1-3/4" to 2-1/4" doors only
- Latch: Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled
- Strike: STK standard (2-3/4" x 1 1/8" with curved lip)
- Projection on door - Approx 2-3/4" when mounted on 1-3/4" door.
- Lever style: 16 - Curved without return lever
- Rose style: L - 3-1/2" convex no ring
- Deadlocking latchbolt standard
- Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
*Note: It includes a lost motion design allowing the lever to move 45°-60° without engaging the retractor assembly.
