Product Description

ALX170-SAT-605 Schlage ALX Series - Saturn Style Lock with Dummy Trim in Bright Brass Finish

The Schlage ALX170-SAT-605 Saturn commercial cylindrical lock series is a stronger lock that offers a greater value at a cheaper price point than the ALX Series. The cost of the kits is intended to be comparable to factory configured counterparts. Thus, whether factory configured, wholesale configured, or offered as kits, the pricing structure establishes list price parity, allowing wholesalers to price and market equally. The ALX Series has always provided a balance of robustness and durability, as well as proven Schlage key system alternatives, at a price range that is appropriate for any application. While these characteristics remain, the lock has changed. Beyond robustness and security, the ALX Series' features also provide flexibility and value. The X Factor characteristics derived from modular design define a lock that outperforms expectations. These series Certified with A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength characteristics and durability.

Features and Benefits:

• Bright Brass finish

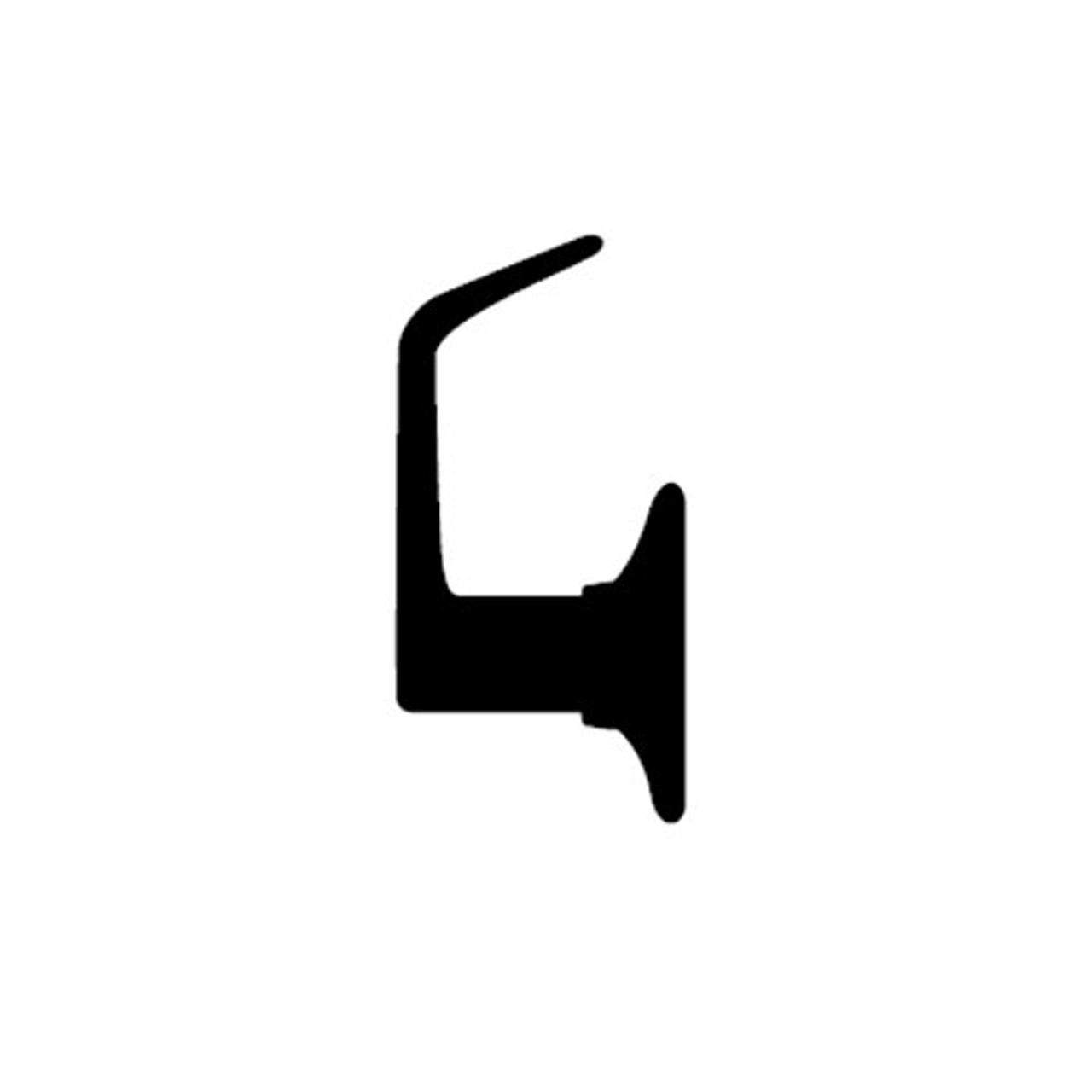

• Saturn (SAT) Lever
• Cylindrical Lock with Field Selectable Vandlgard
• ANSI A156.2-2011, series 4000 Grade 2 certified
• Pressure cast zinc lever and wrought brass or bronze rose construction material
• Dummy Trim: Dummy trim for one side of door
• It is used for door pull or as matching inactive trim
• Backset: 2-3/4"(70mm) standard
• Rose Diameter: 3-7/16" (87mm)
• Lever Projection: 2-1/2" (64mm)
• Lever Length: 4-1/4" (108 mm)
• Door Thickness: 1-3/8" to 1-7/8" (35 mm to 48 mm) standard
• UL listed hardware for up to three-hour fire doors available
• Latch: 1" x 2-1/4", square corner
• Strike: 1-1/4" x 4-7/8" ANSI type
