Product Description

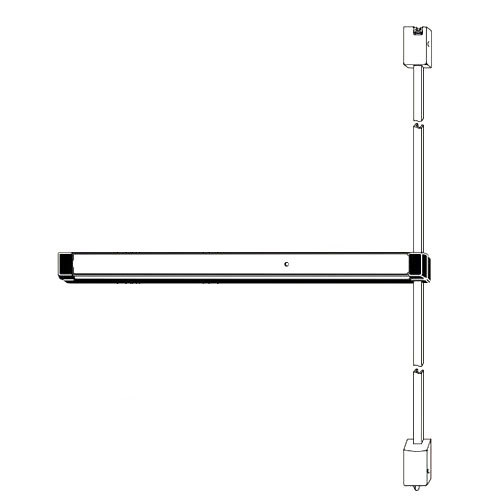

8200-LRM-30-US32D Adams Rite Narrow Stile Surface Vertical Rod Exit Device in Satin Stainless Finish

The 8200-LRM-30-US32D series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Benefits and Features:

• Satin Stainless Pushbar Finish
• Pushbar Length: 30 inches
• Bar Height: Standard model adjusts from 30" to 44"
• Electric Latch Retraction
• Life Safety
• Door Height: Standard model fits up to 8 ft door with bar height at 40"- 44"
• Door Thickness: Suits 1-3/4" standard up to 2-1/4"
• Stile Width: Minimum 2" stile
• Projection: 2-15/16" when fully projected, 1-15/16" when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Standard Rod Bar
• Grade 1 strength
• Single switch monitoring feature
• The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device
• 5 year limited manufacturer's warranty is included
