Product Description

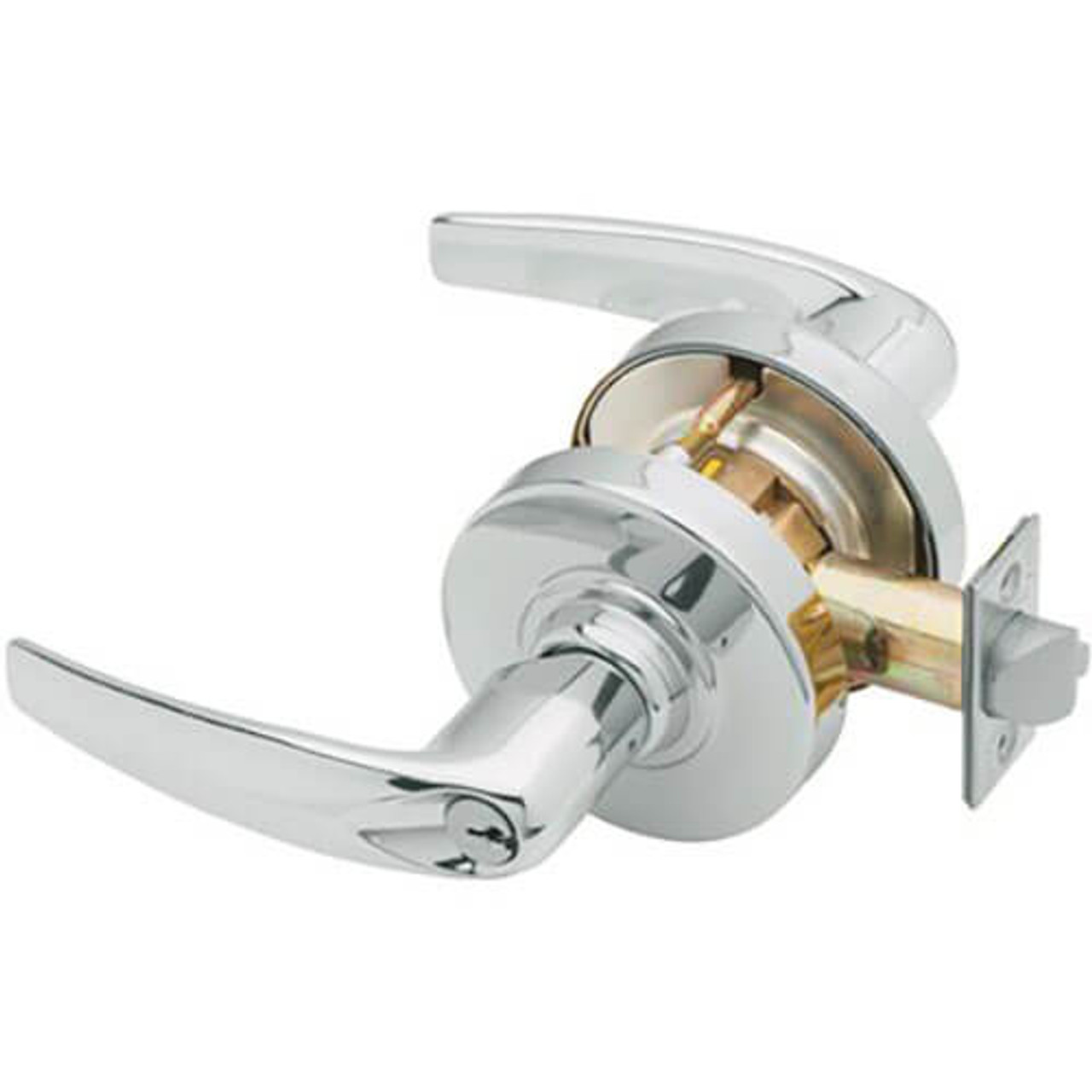

ALX50PD-ATH-625 Schlage ALX Series - Athens Style Lock with Entrance/Office Lock in Bright Chromium Plated Finish
The Schlage ALX50PD-ATH-625 Athens commercial cylindrical lock series is a stronger lock that offers a greater value at a cheaper price point than the ALX Series. The cost of the kits is intended to be comparable to factory configured counterparts. Thus, whether factory configured, wholesale configured, or offered as kits, the pricing structure establishes list price parity, allowing wholesalers to price and market equally. The ALX Series has always provided a balance of robustness and durability, as well as proven Schlage key system alternatives, at a price range that is appropriate for any application. While these characteristics remain, the lock has changed. Beyond robustness and security, the ALX Series' features also provide flexibility and value. The X Factor characteristics derived from modular design define a lock that outperforms expectations. These series Certified with A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength characteristics and durability.
Features and Benefits:
- Bright Chromium Plated finish
- Athens (ATH) Lever
- Cylindrical Lock with Field Selectable Vandlgard
- Pressure cast zinc lever and wrought brass or bronze rose construction material
- ANSI: F82
- 6-Pin solid brass cylinder, keyed 5-pin, C keyway
- Entrance/Office Lock- Most popular function: Push-button locking
- Push-button locks outside lever until it is unlocked with a key or by rotating the inside lever
- Inside lever always free for immediate egress
- Backset: 2-3/4"(70mm) standard
- Rose Diameter: 3-7/16" (87mm)
- Lever Projection: 2-1/2" (64mm)
- Lever Length: 4-1/4" (108 mm)
- Door Thickness: 1-3/8" to 1-7/8" (35 mm to 48 mm) standard
- UL listed hardware for up to three-hour fire doors available
- ANSI A156.2-2011, series 4000 Grade 2 certified
- Latch: 1" x 2-1/4", square corner
- 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Strike: 1-1/4" x 4-7/8" ANSI type
