Product Description

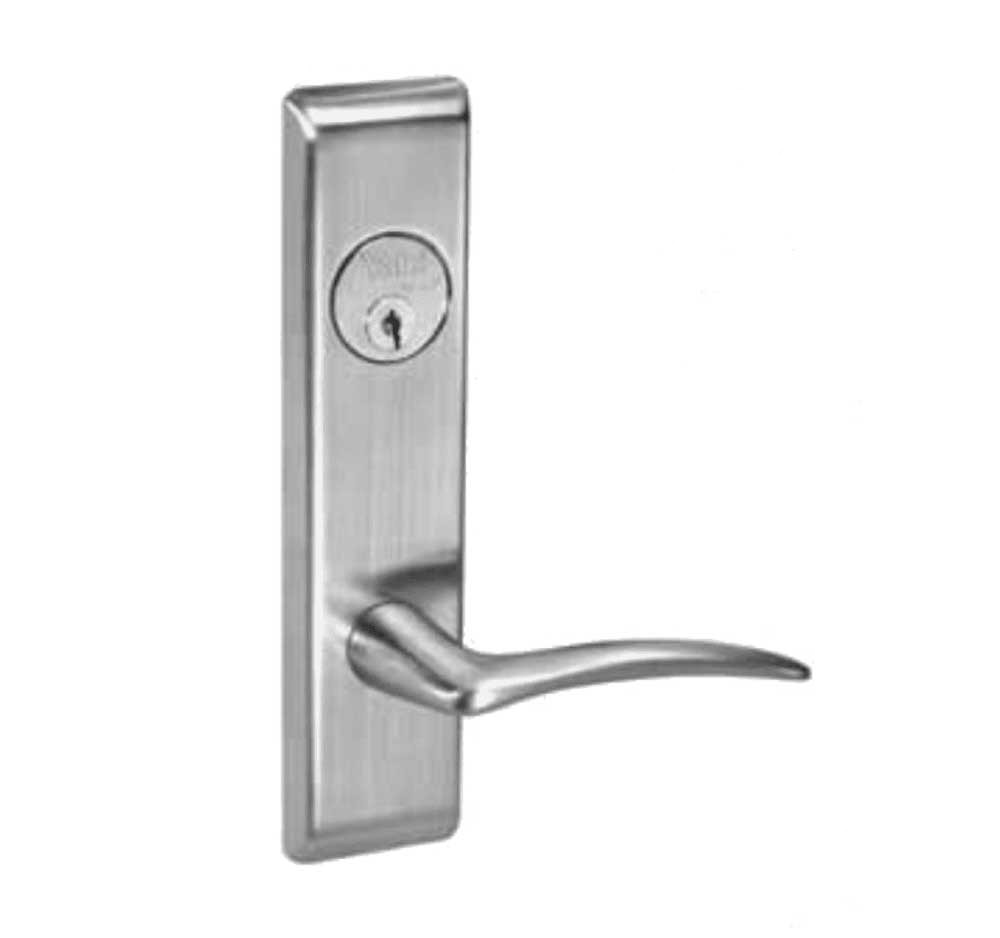

ARCN8812-2FL-618-LH-SFICLC Yale 8800FL Series Double Cylinder Mortise Classroom Security Deadbolt Locks with Arcadia Lever - Left Handed Lock Prepped SFIC in Bright Nickel Finish
The Yale ARCN8812-2FL-618-LH-SFICLC mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Classroom Security Deadbolt lock: Latchbolt retracted by lever either side unless outside knob/lever is locked by key. Deadbolt operated by key either side. When deadbolt is projected, outside lever is automatically locked. Key retraction of deadbolt unlocks outside lever. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever.
Features and Benefits:
- Bright Nickel finish
- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Left handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Double Cylinder with deadbolt
- Lever: Arcadia Lever

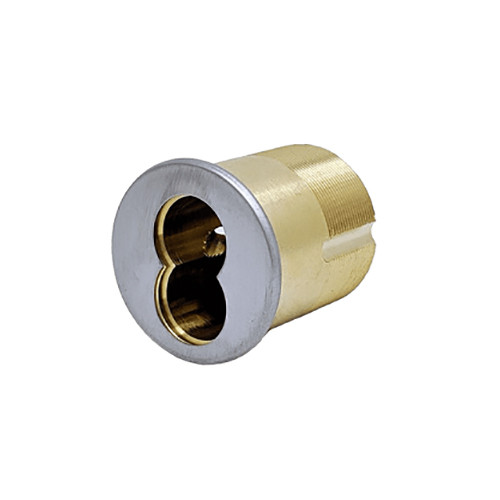

- Cylinder Type: 6-Pin SFIC Prep - Less Core
- Rose: Copenhagen rose trim
- Escutcheon Design: CN Escutcheon
- Deadbolt: 1" throw, solid investment cast stainless steel.
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
