Product Description

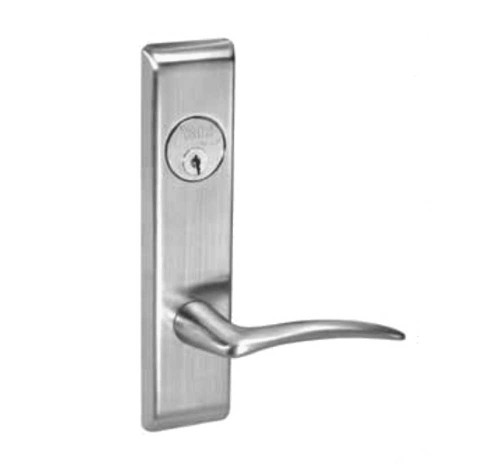

ARCN8822FL-626-LH-LC Yale 8800FL Series Less Cylinder with Deadbolt Mortise Bathroom Lock with Indicator with Arcadia Lever - Left-Handed in Satin Chrome Finish
The Yale ARCN8822FL-626-LH-LC mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Dormitory lock: Latchbolt retracted by lever either side. Deadbolt operated by key outside and thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever.
Features and Benefits:
- Satin Chrome finish
- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Right handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Less Cylinder
- Lever: Arcadia Lever
- Escutcheon Design: CN Escutcheon
- Deadbolt: 1" throw, solid investment cast stainless steel.
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
