Product Description

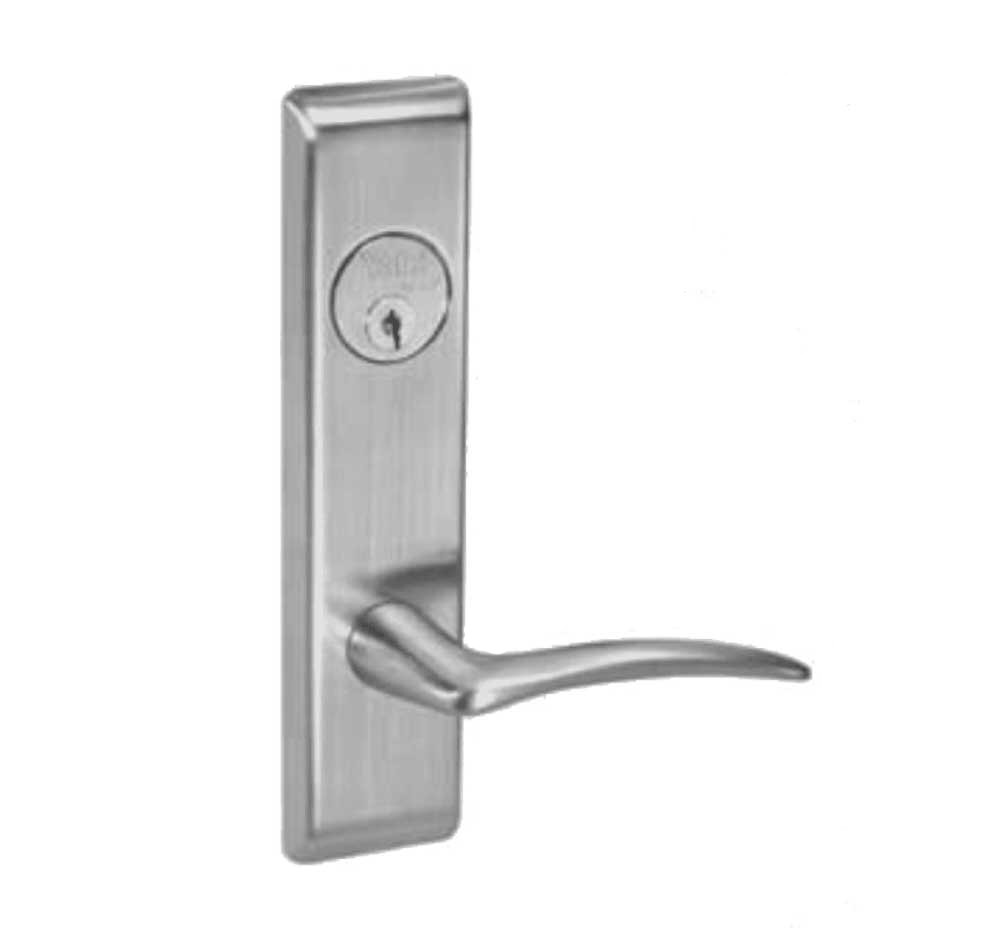

ARCN8860FL-630-RH-ICLC Yale 8800FL Series Single Cylinder with Deadbolt Mortise Entrance or Storeroom Lock with Indicator with Arcadia Lever - Right-Handed Lock Prepped LFIC in Satin Stainless Steel Finish

The Yale ARCN8860FL-630-RH-ICLC mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Entrance or Storeroom lock: Latchbolt retracted by lever either side. Deadbolt operated by key outside, thumbturn inside.

Features and Benefits:

• Satin Stainless Steel finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Right handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Single cylinder
• Lever: Arcadia Lever
• Cylinder Type: 6-Pin LFIC Prep - Less Core
• Escutcheon Design: CN Escutcheon
• Deadbolt: 1" throw, solid investment cast stainless steel.
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
