Product Description

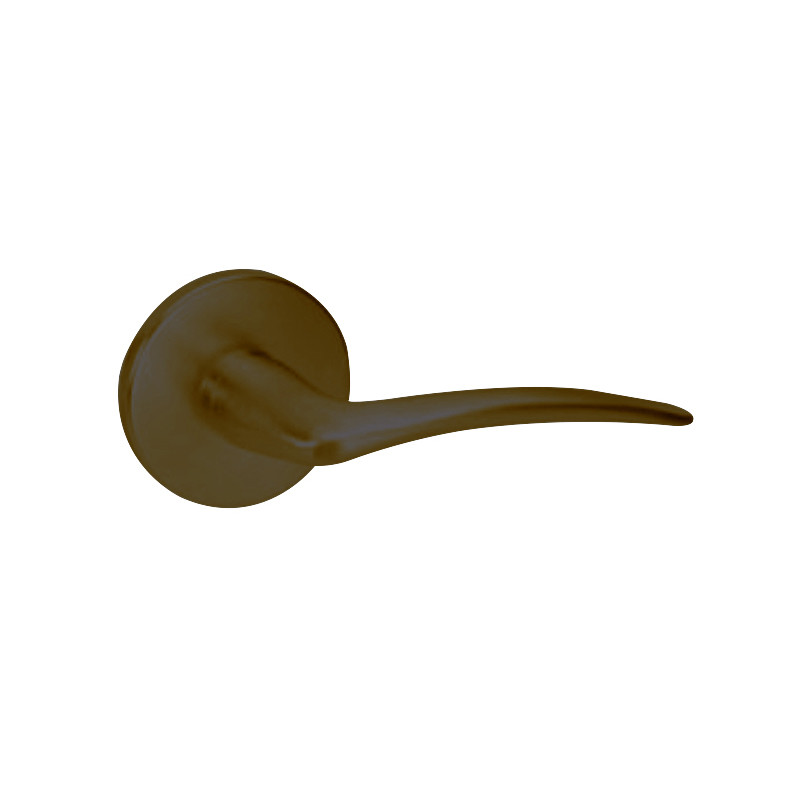

ARR8808FL-613E-RH Yale 8800FL Series Single Cylinder Mortise Classroom Locks with Arcadia Lever - Right-Handed in Dark Satin Bronze Finish

The Yale ARR8808FL-613E-RH mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Classroom lock: Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key outside. Inside lever always active.

Features and Benefits:

• Dark Satin Bronze finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Right-Handed design
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Single cylinder
• Lever: Arcadia Lever
• Rose: Copenhagen rose trim
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
