Product Description

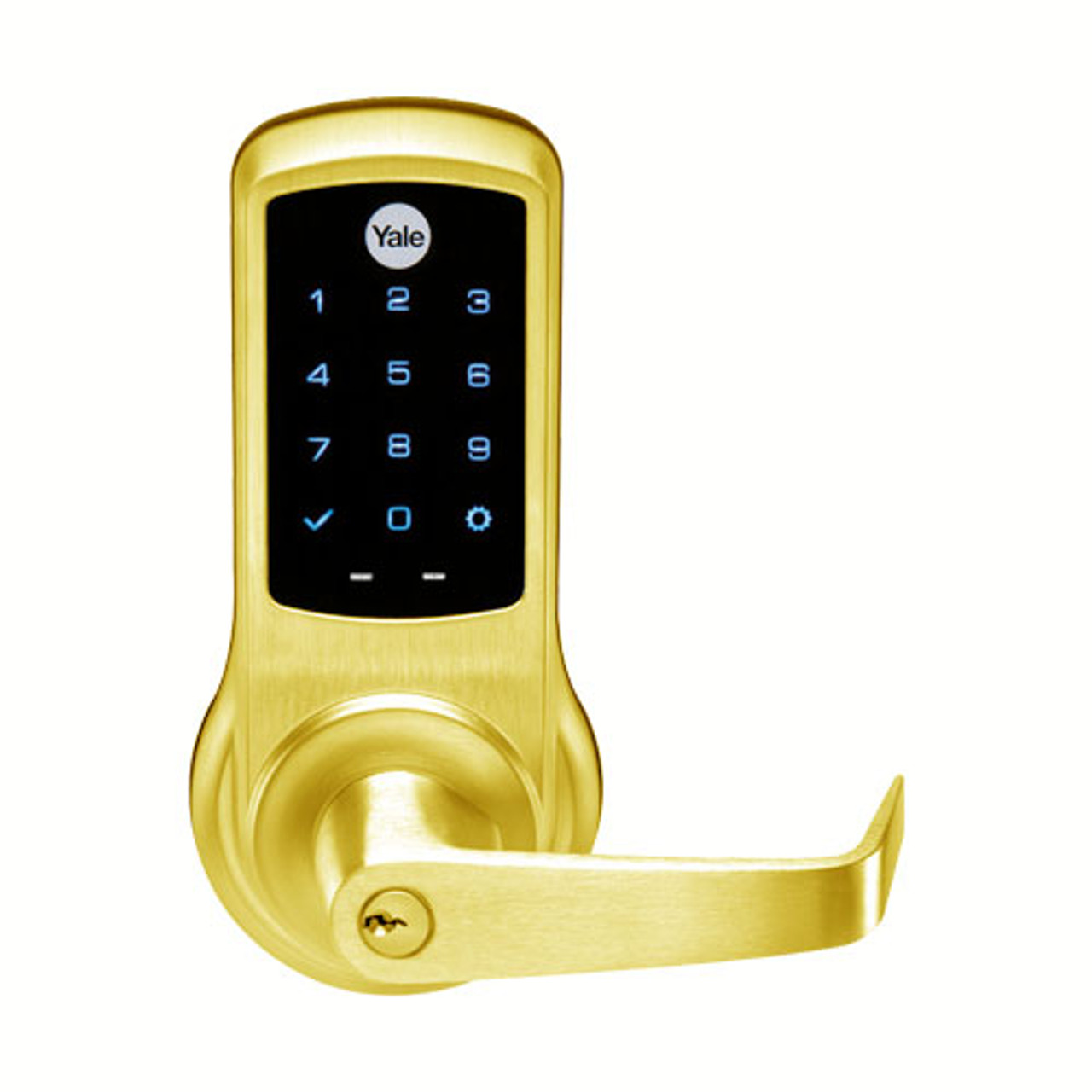

AU-NTB620-NR-605-2802 Yale NexTouch Capacitive Touchscreen Access Lock Schlage C Keyway with Augusta Lever in Bright Brass Finish

The Yale AU-NTB620-NR-605-2802 NexTouch standalone access lock provides a comprehensive, easy-to-use access control solution to protect your facility and personnel. NexTouch completely modular design allows users to easily upgrade more advanced security technologies as their needs increase and change. NexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. The Nextouch access lock is certified to ANSI/BHMA A156.2, Series 4000 Grade 1.

Features and Benefits:

• Bright Brass finish
• Lever style: (AU) Augusta lever
• Handing: Non handed
• Keyway: Schlage C Keyway
• Technology: Keypad only, no radio
• Bored lock w/capacitive touchscreen - cylinder override
• For doors that require mechanical key override
• Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside.
• Inside lever always active
• Deadlocking latchbolt: Model No. 694 latchbolt has a 2-1/4" x 1-1/8" front with a 2-3/4" backset and a 1/2" bolt throw
• Strike: 497 ANSI strike standard
• Door Thickness: 1-3/4" Standard
• 1-1/2" (38mm) diameter piston
• Adjustable spring sizes 1 through 6 (ADA Compliant)
• Power: Battery pack
• Operating Voltage: 4 AA Batteries
• Works with cloud-based management software
• Up to 500 user codes in keypad only operation
