Product Description
AU4702LN-626 Yale 4700LN Series Non Keyed Privacy Bedroom or Bath Cylindrical Lock with Augusta Lever in Satin Chrome Finish
The Yale AU4702LN-626 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.

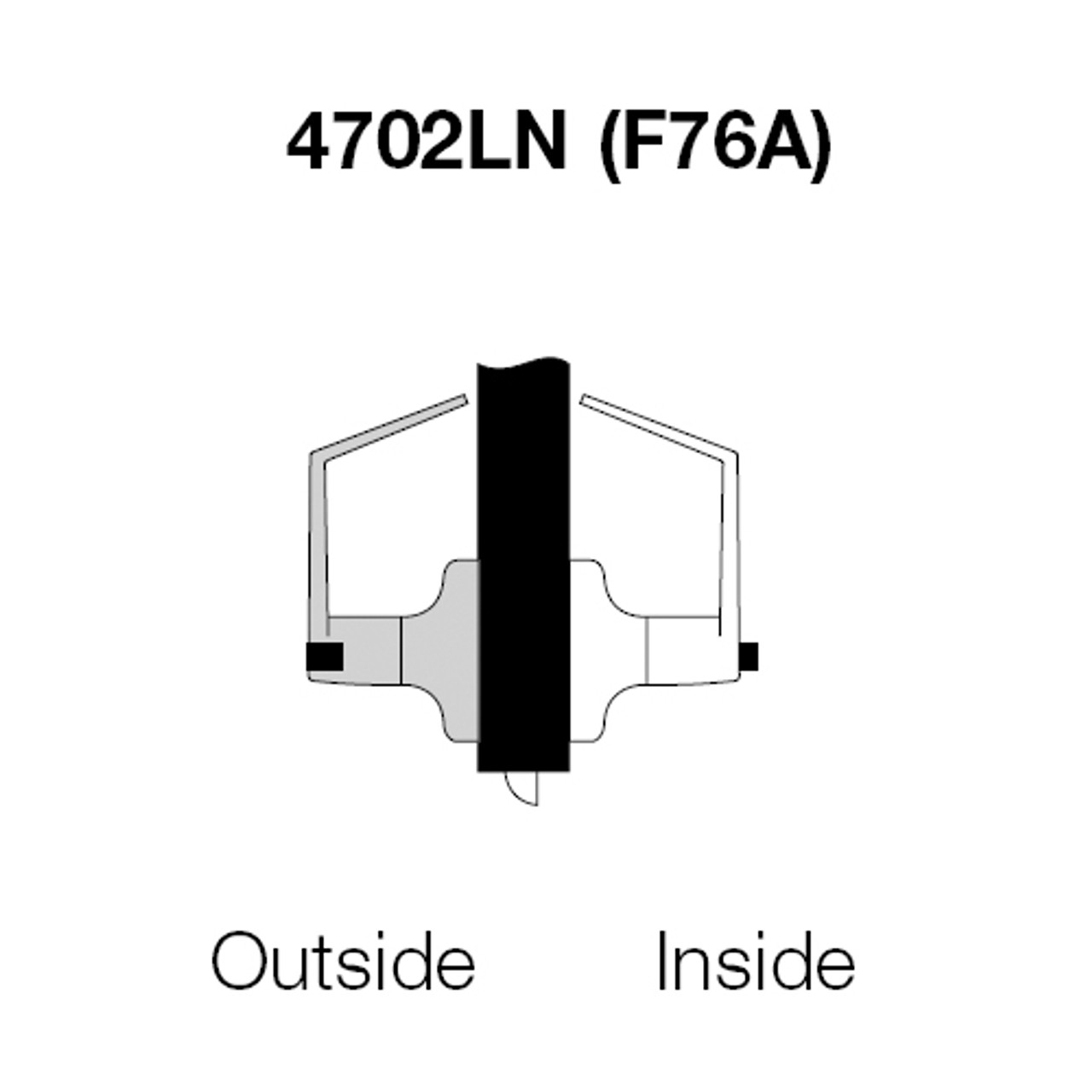

Privacy, Bedroom or Bath Lock: Used for lavatory or other privacy doors. Either lever operates latchbolt unless outside lever is locked by pushbutton inside. Button automatically releases when inside lever is turned or door is closed. Emergency release in outside lever. Emergency key supplied.
Features and Benefits:
- Satin Chrome finish
- Backset: 2-3/4" standard
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Handing: Non handed
- Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Non keyed latchsets
- Lever: Augusta lever design
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
- ANSI/BHMA: A156.2, Series 4000 Grade 1
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
