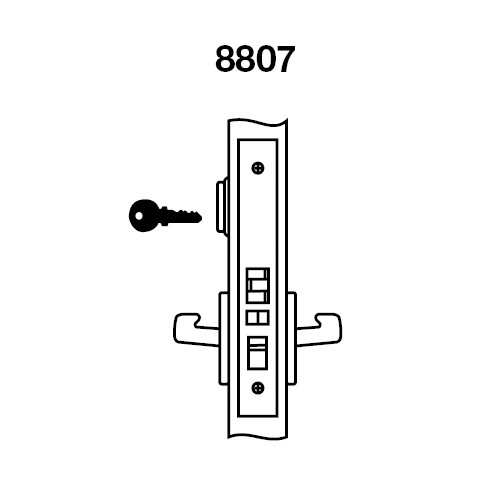

AUCN8807FL-606 Yale 8800FL Series Single Cylinder Mortise Entrance Locks with Augusta Lever in Satin Brass Finish

The Yale AUCN8807FL-606 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Entrance lock: Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. When outside lever is locked, latchbolt is operated by key outside and lever inside.

Features and Benefits:

• Satin Brass finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Non handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Single cylinder
• Lever: Augusta lever design
• Escutcheon: Camden CN trim design
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
