Product Description

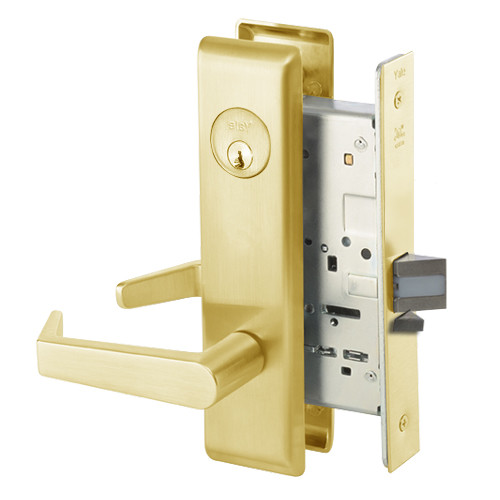

AUCN8809FL-605 Yale 8800FL Series Single Cylinder Mortise Classroom w/ Thumbturn Locks with Augusta Lever in Bright Brass Finish

The Yale AUCN8809FL-605 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

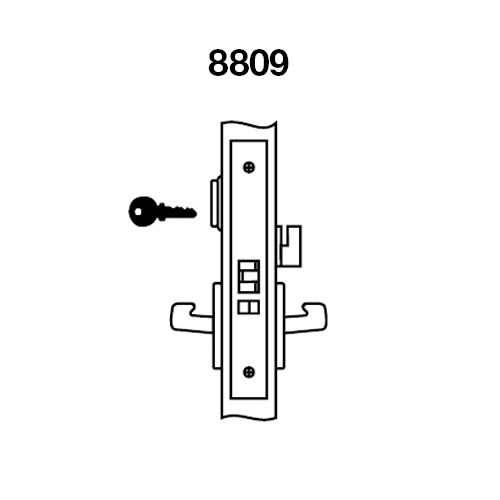

Classroom or Office with Thumbturn Lock: Latchbolt retracted by lever either side unless outside lever is locked by key outside or thumbturn inside. Latchbolt retracted by thumbturn inside or key outside. Inside lever always active.

Features and Benefits:

• Bright Brass finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Non handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Single cylinder
• Lever: Augusta lever design
• Escutcheon: Camden CN trim design
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
