Product Description

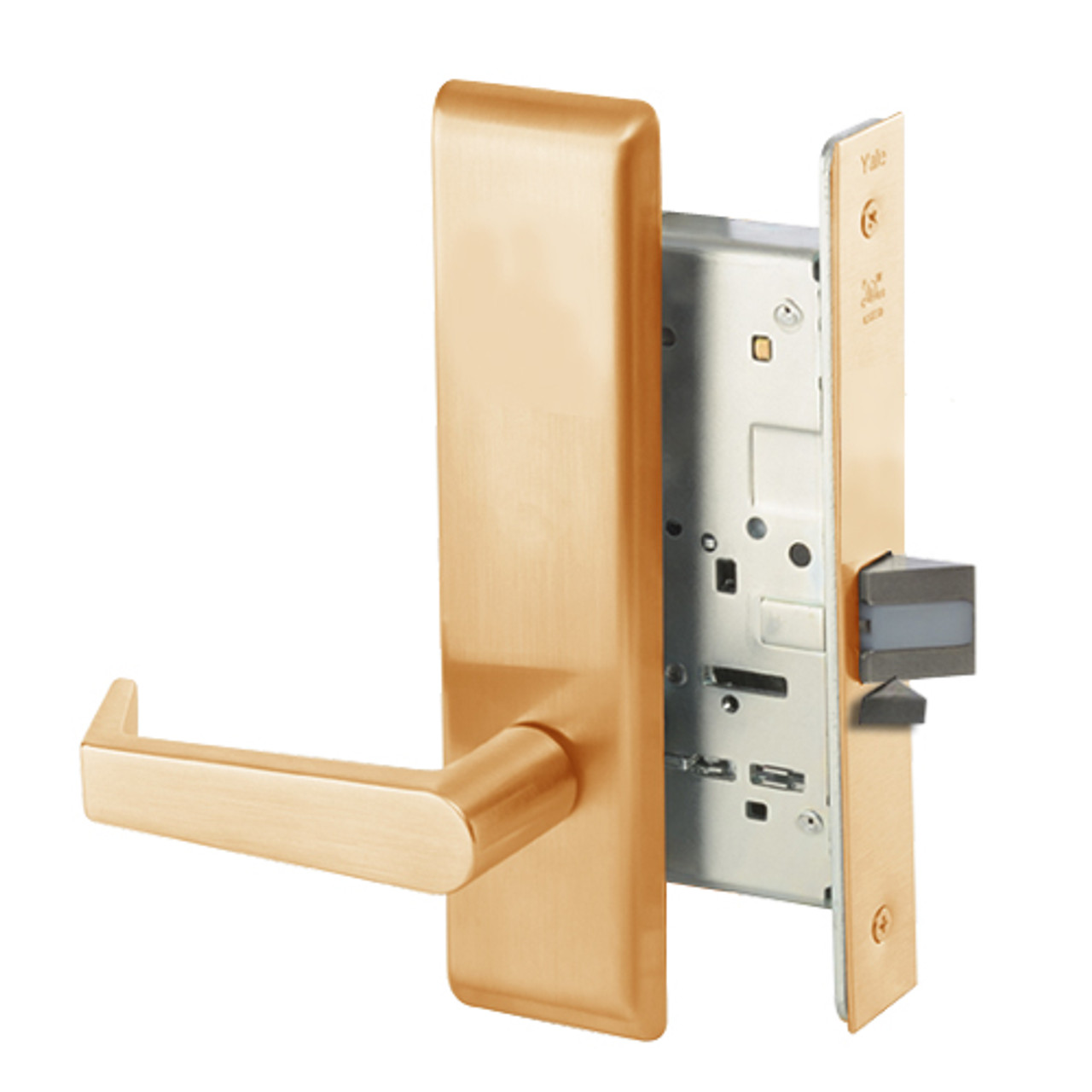

AUCN8828FL-612 Yale 8800FL Series Non-Keyed Mortise Exit Locks with Augusta Lever in Satin Bronze Finish

The Yale AUCN8828FL-612 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Exit lock: For twin communicating or exit doors where one-sided operation is required. Latchbolt retracted by lever inside at all times. No outside operations. Deadlocking latchbolt.

Features and Benefits:

• Satin Bronze finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Non handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Non keyed lock
• Lever: Augusta lever design
• Escutcheon: Camden CN trim design
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
