Product Description

AUCN8830-2FL-626-SFICLC Yale 8800FL Series Double Cylinder Mortise Asylum Locks with Augusta Lever Lock Prepped SFIC in Satin Chrome Finish

The Yale AUCN8830-2FL-626-SFICLC mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Asylum lock: Latchbolt retracted by key both sides. Rigid lever both sides for use as pulls only; Deadlocking latchbolt.

Features and Benefits:

• Satin Chrome finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Non handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Double cylinder
• Lever: Augusta Lever

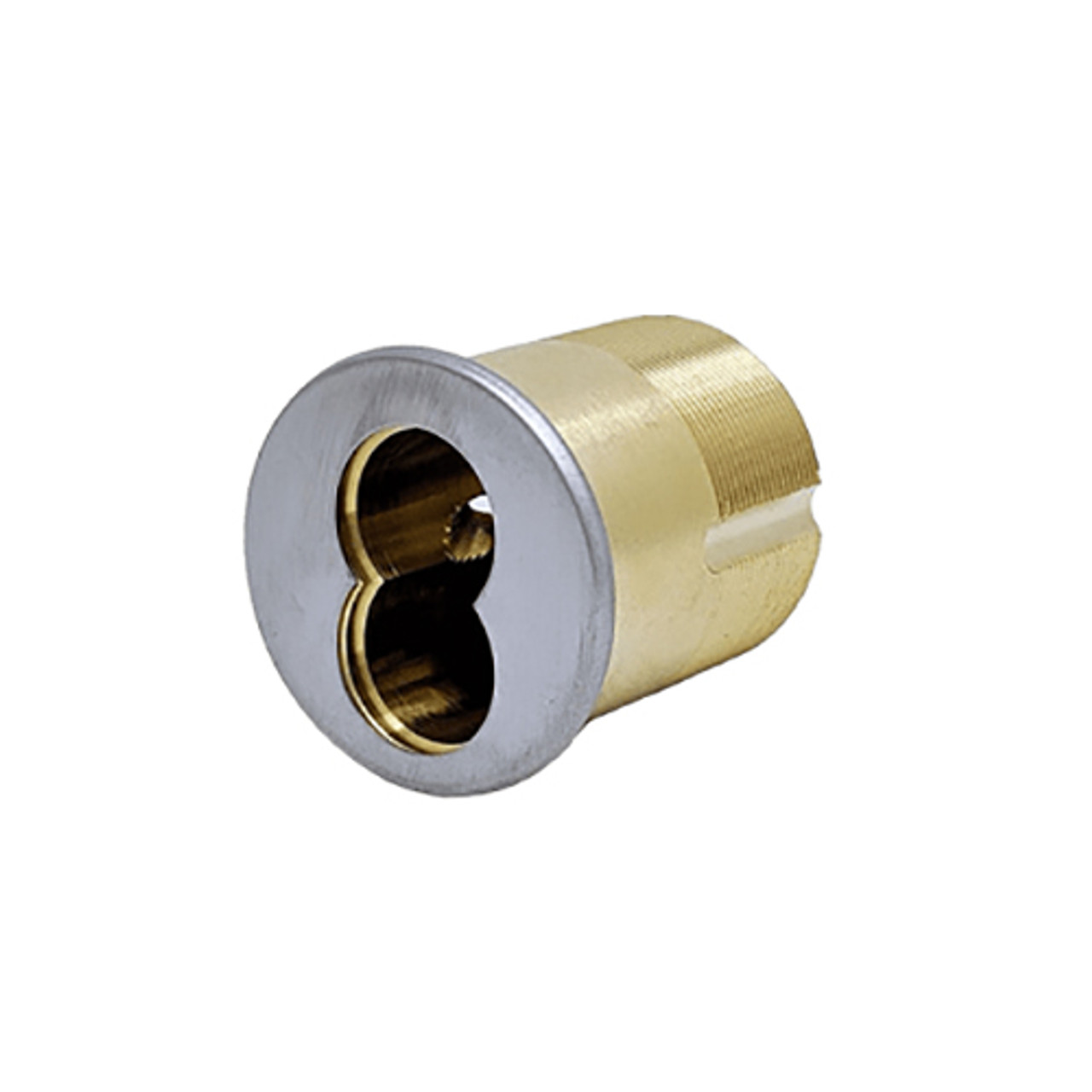

• Cylinder Type: 6-Pin SFIC Prep - Less Core
• Escutcheon: Camden CN trim design
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
