Product Description

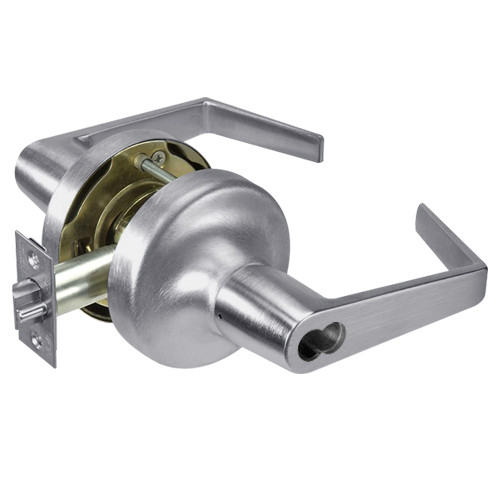

B-AU5308LN-626 Yale 5300LN Series Single Cylinder Classroom Cylindrical Lock with Augusta Lever Prepped for SFIC in Satin Chrome Finish
The Yale B-AU5308LN-626 cylindrical lock series is designed for industrial, commercial and institutional use. The Yale 5300LN series cylindrical lockset feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural decor. All 5300LN locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked. The 5300LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 2.
Classroom lock: Used for classroom or utility room doors. Deadlocking latchbolt. Either lever operates latchbolt. Inside lever always active. Outside lever locked or unlocked only by key.
Features and Benefits:
- Satin Chrome finish
- Backset: 2-3/4" standard
- Core is not included
- Door Thickness: Adjustable from 1-3/4" to 2"
- Handing: Non handed
- Strikes: 1-1/4" curved lip for 1-3/4" door standard
- Fronts: Universal for both flat and beveled door edges.
- Single cylinder
- Lever: Augusta lever design
- Prepped for small format interchangeable core, 6- or 7 pin
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, zinc-plated, dichromated
- ANSI/BHMA: A156.2, Series 4000 Grade 2
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
