Product Description

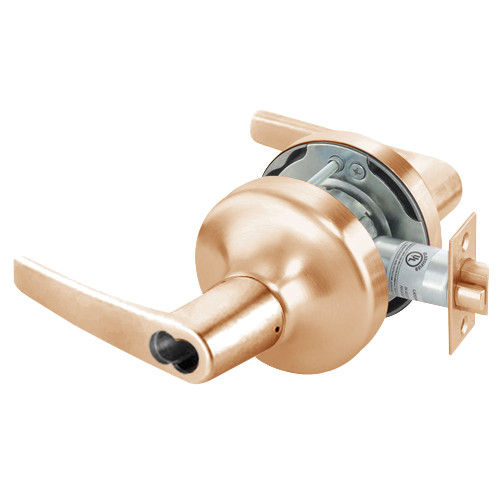

B-MO4704LN-612 Yale 4700LN Series Single Cylinder Entry Cylindrical Lock with Monroe Lever Prepped for SFIC in Satin Bronze Finish
The Yale B-MO4704LN-612 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.
Entry Lock: Used for entrance or office doors. Deadlocking latchbolt, Either lever operates latchbolt (except when outside lever is locked from inside). Pushing button in inside lever locks outside lever. Latchbolt is operated by key in outside lever or by rotating inside lever
Features and Benefits:
- Satin Bronze finish
- Backset: 2-3/4" standard
- Core is not included
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Handing: Non handed
- Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
- Fronts: 2-1/4" x 1-1/8" beveled standard
- Single cylinder
- Lever: Monroe lever design
- Prepped for small format interchangeable core, 6- or 7 pin
- Latchbolt: 1/2" stainless steel throw standard
- Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
- ANSI/BHMA: A156.2, Series 4000 Grade 1
- Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
