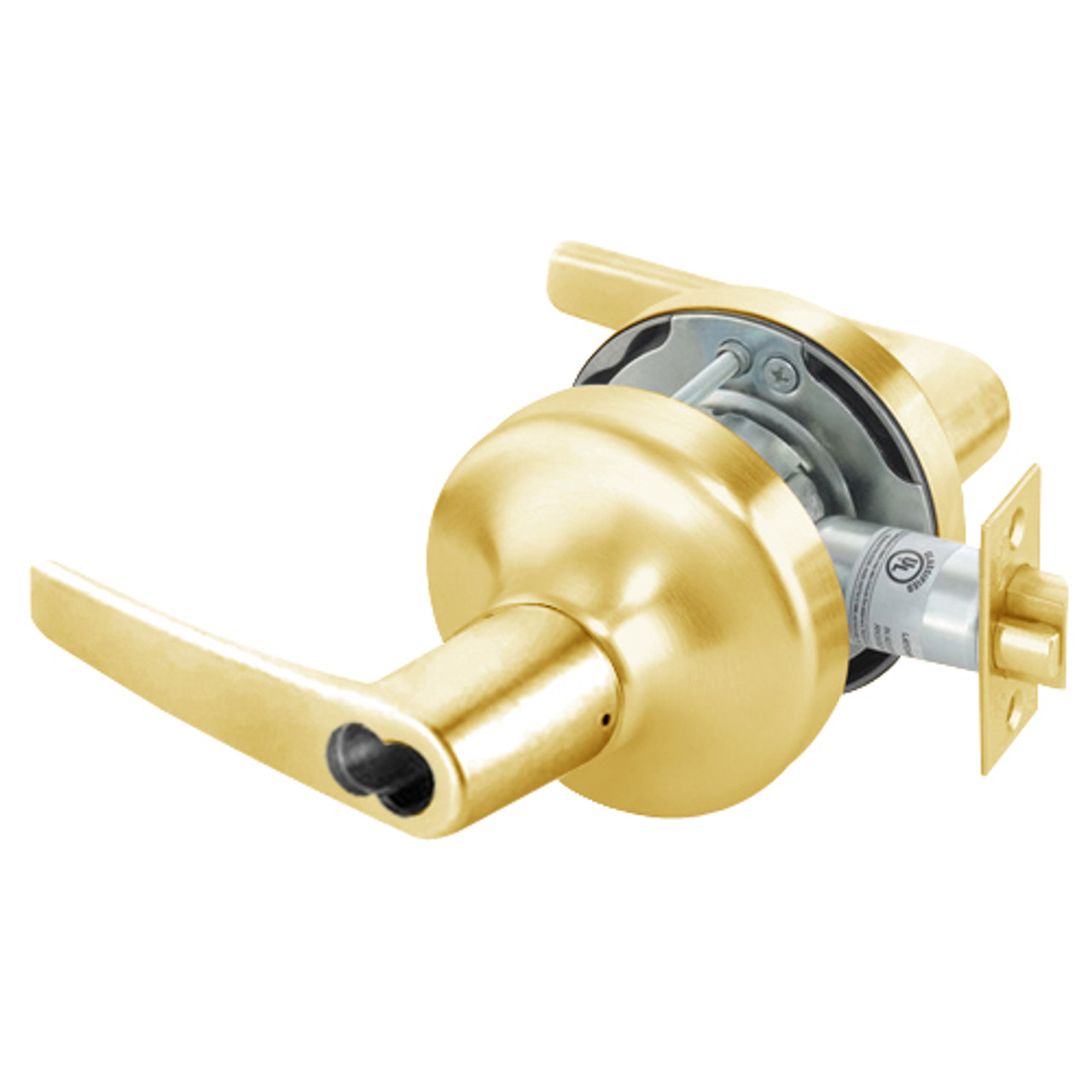

B-MO4705LN-605 Yale 4700LN Series Single Cylinder Storeroom or Closet Cylindrical Lock with Monroe Lever Prepped for SFIC in Bright Brass Finish

The Yale B-MO4705LN-605 cylindrical lock series is designed for the commercial applications. The Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN cylindrical lock series are certified to the ANSI/BHMA A156.2, Series 4000, Grade 1.

Storeroom or Closet Lock: Used for storeroom, utility, and exit doors. Deadlocking latchbolt, Latchbolt operated by lever inside, key in outside lever. Outside lever always locked.

Features and Benefits:

• Bright Brass finish
• Backset: 2-3/4" standard
• Core is not included
• Door Thickness: Adjustable from 1-3/8" to 1-3/4"
• Handing: Non handed
• Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard.
• Fronts: 2-1/4" x 1-1/8" beveled standard
• Single cylinder
• Lever: Monroe lever design
• Prepped for small format interchangeable core, 6- or 7 pin
• Latchbolt: 1/2" stainless steel throw standard
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
• ANSI/BHMA: A156.2, Series 4000 Grade 1
• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
