Product Description

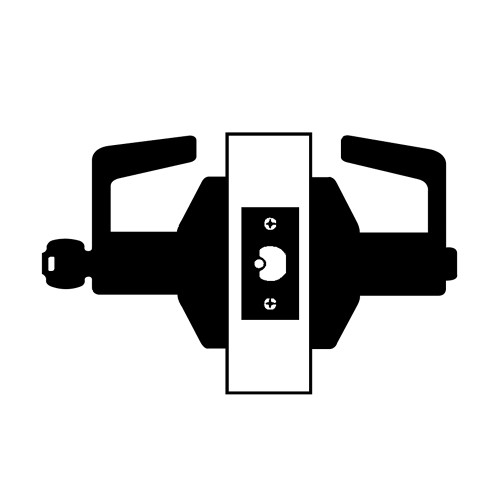

B611BD-Q-626 Falcon B Series Single Cylinder Dormitory/Corridor Lock with Quantum Lever Style in Satin Chrome Finish

The Falcon B611BD-Q-626 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the B series lock is perfect replacement for existing locks, or a smart spec in new construction. The Falcon B Series cylindrical lock provides tough, reliable lock. The B series are certified to ANSI A156.2, Series 4000, Grade 2, UL Listed for 3-Hour fire door.

Assisted living lock - Deadlocking latch bolt by levers except when locked by push button on inside lever. Key in outside lever locks or unlocks outside lever and releases button. Closing door releases push button. Inside lever is always free.

Features and Benefits:

• Satin Chrome finish
• Door thickness: 1-3/8" to 2" standard
• Backset: 2-3/4" standard
• Handing: Non handed
• Single cylinder
• ANSI: F90
• Core is not included
• Q (Quantum)lever trim
• Prepped for small format interchangeable core, not included
• No keys or core is included with this lock, must be purchased separately
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
