Product Description

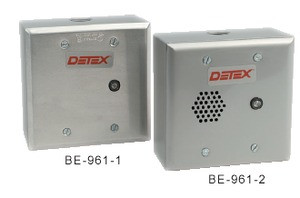

BE-961-1 Detex Battery Eliminator Models
The Detex battery eliminator is designed to power security devices such as the Detex ECL-230D, ECL-600 battery powered series exit control locks, V40 alarmed rim exit device or EAX-500 exit alarms (the BE-961-2 will power the ECL-230 and ECL-600), without reliance on normal batteries. This unit can drive up to three ECL-230D's , three ECL-600's, three V40's, or three EA-500's. The wire run from the most remote unit to the BE-961 should not exceed 75 feet using 18 gauge stranded wire. Battery Eliminator may be installed on the wall adjacent to the protected door quickly and easily. Flexible armored cable connects the battery eliminator to the security device without interfering with the door use. And for extra security, the connecting cable may be concealed in the door using a third parties continuous electric hinge.
Features and Benefits:
- Two models are available, BE-961-1 and BE-961-2.
- 961-2 model includes an internal alarm which sounds at 95dB if the secure power feed wires are cut or when the ECL unit sounds.
- Line input transient suppression and power status LED are standard features.
- State-of-the-art electronic closed-loop circuit operation. Physical Specifications: ss Dimensions- 4-5/8" wide x 4-5/8" long x 2" deep
- Standard cast aluminum case
- Power Specifications: ss 2 VAC 25 VA transformer included. 120 VAC must be supplied to transformer
- 9 VDC or 6 VDC power output
- Packed with installation instructions, transformer, 9'6" flexible armored cable and mounting hardware.
This is no longer made, check the BE-961-2 to see if that will work for you.
