Product Description

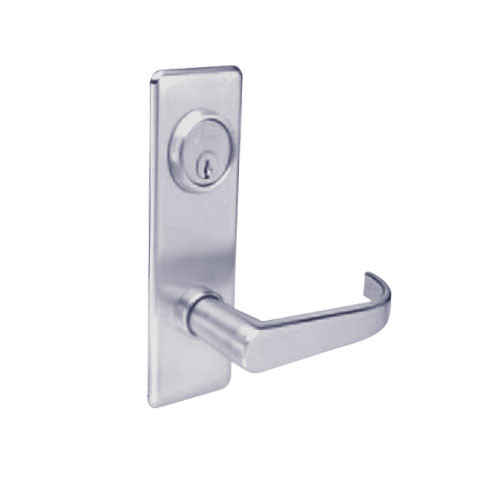

BM01-BRG-26D Arrow Mortise Lock BM Series Passage Lever with Broadway Design and G Escutcheon in Satin Chrome Finish

The Arrow BM01-BRG-26D passage function mortise lock is designed for commercial and institutional applications. It is engineered for strength and performance and is manufactured to exacting standards. Many of the components are interchangeable for both functionality and versatility. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings when security, durability and low maintenance are mandatory. The BM01-BRG-26D is certified to BHMA A156.13, Series 1000, operational Grade 1, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case.

Passage: Latch bolt operated by lever either side

Features and Benefits:

• Satin Chrome finish
• Strike: ANSI 1-1/4" x 4-7/8", straight lip, with box standard
• Latch bolt: 3/4" throw, 1" throw, stainless steel
• Backset: 2-3/4"
• Non-keyed
• ANSI: F01
• Broadway lever design with G escutcheon
• Door thickness: Fits 1-3/4"
• Handing: Handed, field reversible without disassembling lock case
• Hub: Nickel steel, 5/16" (8mm)
• Armored front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
