Product Description

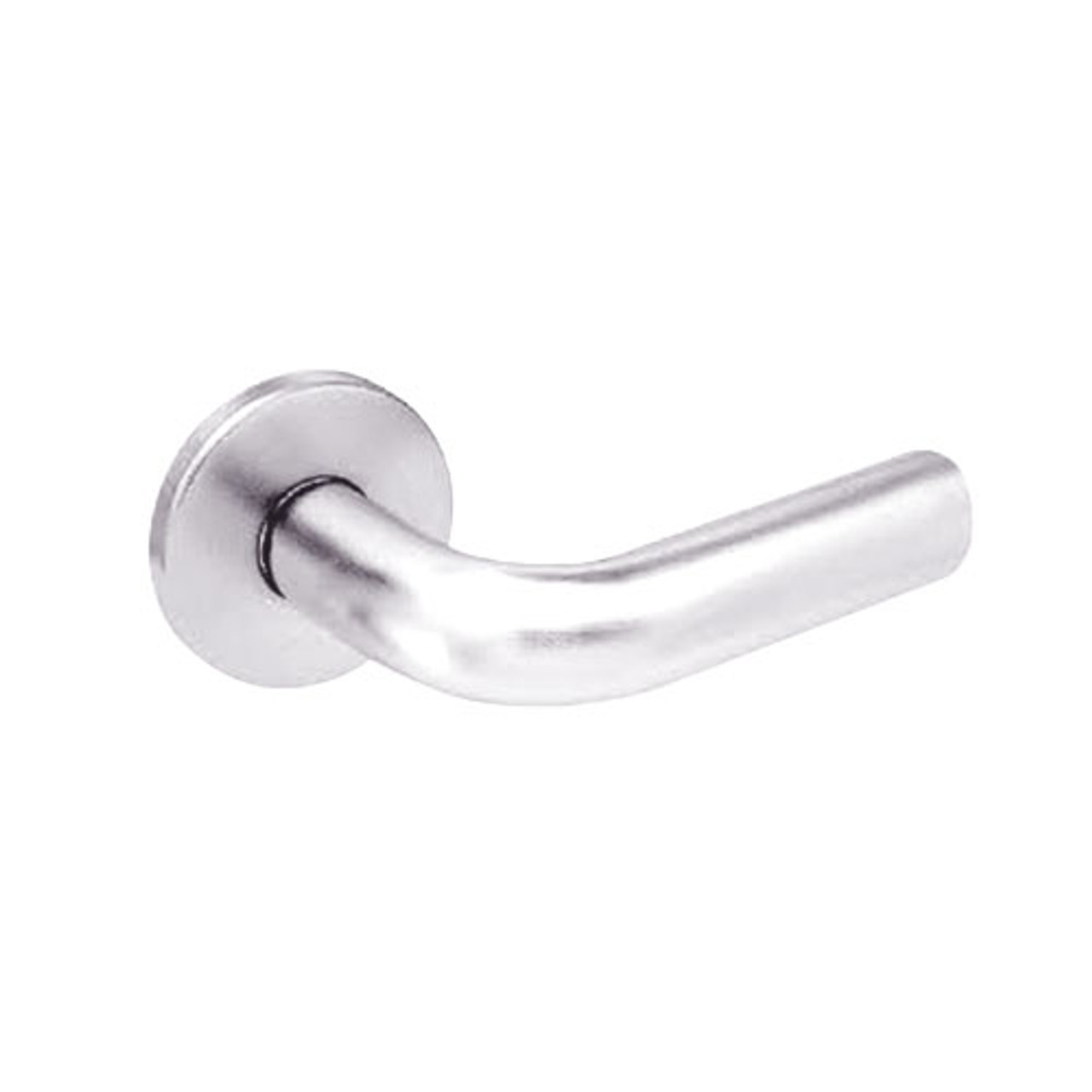

BM32-NL-32 Arrow Mortise Lock BM Series Vestibule Lever with Neo Design in Bright Stainless Steel Finish

The Arrow BM32-NL-32 vestibule function mortise lock is designed for commercial and institutional applications. It is engineered for strength and performance and is manufactured to exacting standards. Many of the components are interchangeable for both functionality and versatility. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings when security, durability and low maintenance are mandatory. The BM01-NL-26D is certified to BHMA A156.13, Series 1000, operational Grade 1, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case.

Vestibule: Latchbolt operated by lever either side, except when outside lever is locked by key from the inside cylinder. When outside lever is locked, latchbolt is retracted by key outside or by lever inside. Auxiliary latchbolt deadlocks latchbolt.

Features and Benefits:

• Bright Stainless Steel finish
• Strike: ANSI 1-1/4" x 4-7/8", straight lip, with box standard
• Latch bolt: 3/4" throw, 1" throw, stainless steel
• Backset: 2-3/4"
• Double cylinder
• ANSI: F09
• Neo lever design
• Door thickness: Fits 1-3/4"
• Cylinder: 6-pin, solid brass, 2 nickel-silver keys standard
• Handing: Handed, field reversible without disassembling lock case
• Hub: Nickel steel, 5/16" (8mm)
• Armored front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
