Product Description

BM34-VH-32 Arrow Mortise Lock BM Series Storeroom Lever with Ventura Design and H Escutcheon in Bright Stainless Steel Finish

The Arrow BM34-VH-32 storeroom function mortise lock is designed for commercial and institutional applications. It is engineered for strength and performance and is manufactured to exacting standards. Many of the components are interchangeable for both functionality and versatility. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings when security, durability and low maintenance are mandatory. The BM01-VH-26D is certified to BHMA A156.13, Series 1000, operational Grade 1, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case.

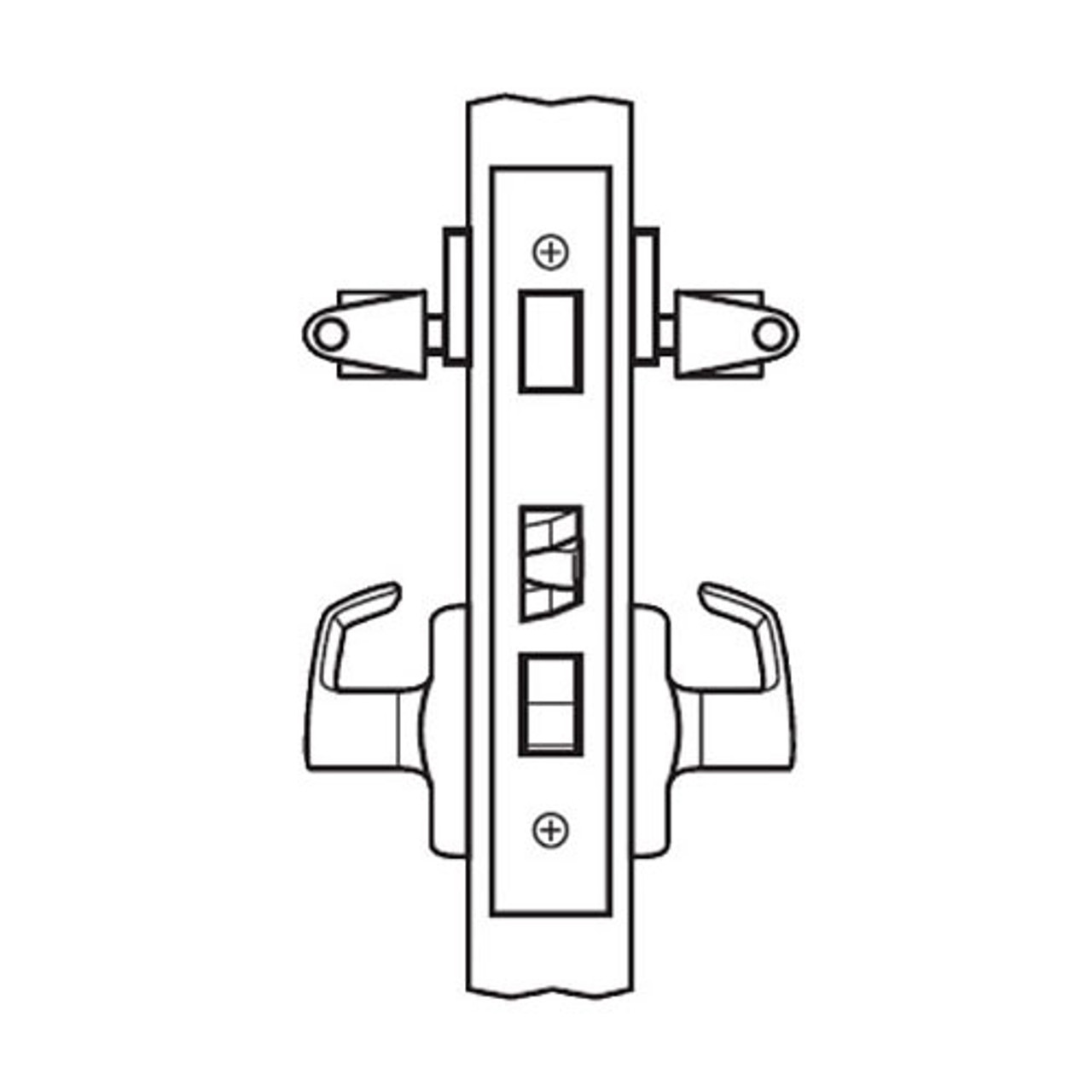

Storeroom: Latchbolt operated by lever either side except when the outside lever is locked by stop works in lock front then operated by key outside or by lever inside. Deadbolt operated by key from either side.

Features and Benefits:

• Bright Stainless Steel finish
• Strike: ANSI 1-1/4" x 4-7/8", straight lip, with box standard
• Latch bolt: 3/4" throw, 1" throw, stainless steel
• Backset: 2-3/4"
• Double cylinder
• Ventura lever design with H escutcheon
• Door thickness: Fits 1-3/4"
• Cylinder: 6-pin, solid brass, 2 nickel-silver keys standard
• Handing: Handed, field reversible without disassembling lock case
• Hub: Nickel steel, 5/16" (8mm)
• Armored front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
