Product Description

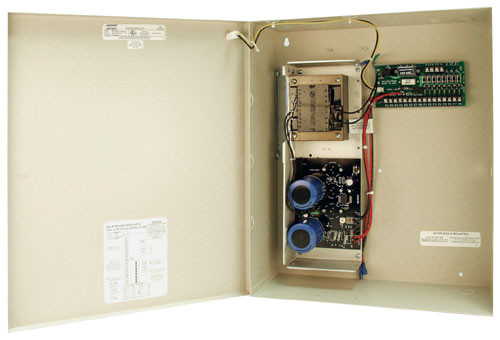

BPS-24-10 Securitron 24VDC Linear Output Boxed Power Supply

The Securitron BPS series of single voltage linear power supply delivers linear technology recommended by most manufacturers of sensitive electronic access control and security components. It is proven safe for use with card readers, electric strikes motion sensors, DC voltage cameras and maglocks. This unit interface to fire alarm systems and provide battery backup. This unit is UL Class 2 listed, allowing for wire runs without the use of conduit from power supply to door. The BPS-24-10 power supply provide 24VDC output with 10 Amp capacity and 8 output.

Features and Benefits:

• 24VDC linear output for high performance
• Supplies 10 Amp continuous current output, even while charging back-up batteries
• LEDs provide an easy-to-read voltage indicator for output zone status (voltage, no voltage)
• 8 output protected with polyswitch (PTC) 2A circuit breakers
• Cabinet size : 15" x 18" x 6"
• Rugged steel enclosure
• Provided with terminals for fire alarm relay connection, allowing release of all devices upon fire alarm activation
• Sealed lead acid-gel battery charging capability (battery not included)
• Clean linear power for flawless operation with all sensitive active electronic components
• UL listed hardware
• MagnaCare Lifetime Replacement No Fault Warranty - Best Warranty Ever!
