Product Description

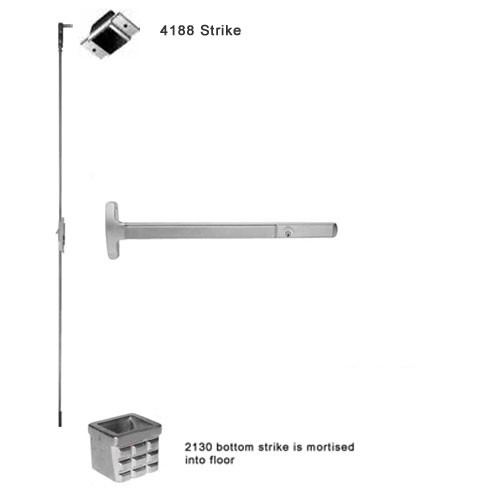

CD24-C-EO-US32D-3 Falcon 24 Series Exit Only Concealed Vertical Rod Device in Satin Stainless Steel Finish

This device is for a 36" door

The Falcon CD24-C-EO-US32D-3 concealed vertical device is used for wood or metal door applications. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and provide security of two point latching. Concealed vertical rods add strength to the door, while maintaining an attractive appearance. This 24-V Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Non handed
• Includes no trim
• Latchbolt: Top stainless steel, top latch 3/4" throw. Bottom bolt 1/2" throw.
• Latch retention hold standard with top latch
• Cylinder dogging: Uses 1-1/8" long mortise cylinder dogging with standard cam.
• Device lengths: 3 feet (36 inch)
• Non fire rated hardware
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Strike: 4188 mortised top and 2130 flush strike bottom (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door.
