Product Description

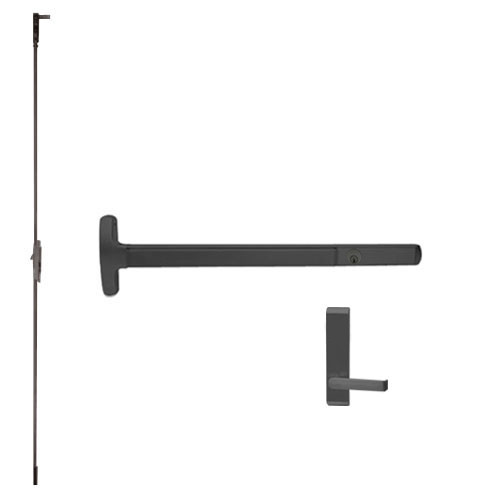

CD24-C-L-DT-DANE-US19-2-RHR Falcon 24 Series Concealed Vertical Rod Device 712L-DT Dane Lever with Dummy Trim in Flat Black Painted Finish

This device is for a 24" door

The Falcon CD24-C-L-DT-DANE-US19-2-RHR concealed vertical device is used for wood or metal door applications. The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and provide security of two point latching. Concealed vertical rods add strength to the door, while maintaining an attractive appearance. This 24-C Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Flat Black Painted finish
• Handing: Right hand reversible
• 712L-DT Dane lever with dummy trim
• Latchbolt: Top stainless steel, top latch 3/4" throw. Bottom bolt 1/2" throw.
• Latch retention hold standard with top latch
• Cylinder dogging: Uses 1-1/8" long mortise cylinder dogging with standard cam.
• Device lengths: 2 feet (24 inch)
• Non fire rated hardware
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard

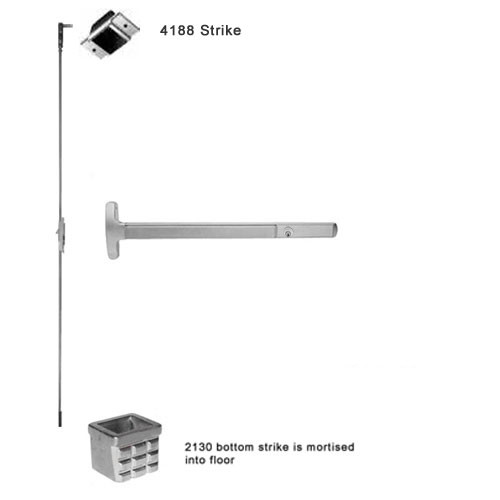

• Strike: 4188 mortised top and 2130 flush strike bottom (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door.
