Product Description

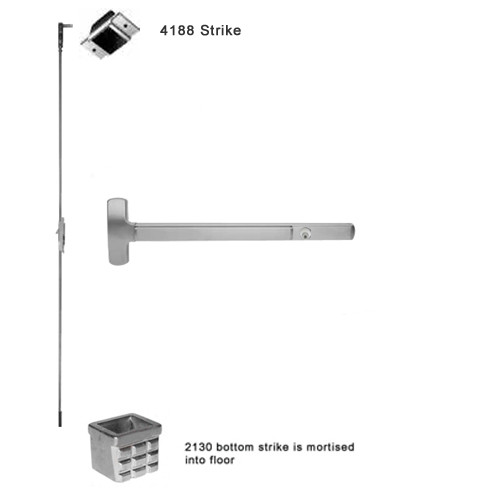

CD25-C-EO-US28-2 Falcon 25 Series Exit Only Concealed Vertical Rod Devices in Anodized Aluminum Finish

This device is for a 24" door

The Falcon CD25-C-EO-US28-2 Concealed vertical rod device is used for metal and wood door applications. The Falcon 25-C Series concealed vertical rod device offers extraordinary value, clean styling and the security advantages of two-point latching. Concealed vertical rods add strength to the door, while maintaining an alluring appearance. This series patented center slide mechanism allows you to easy rod adjustment in the field. The 25-C series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Anodized Aluminum finish
• Handing: Field reversible
• Includes no trim
• Latchbolt: Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw
• Cylinder dogging: Uses 1-1/8" long mortise cylinder dogging with standard cam.
• Device lengths: 2 feet (24 inch)
• Doors: 1-3/4" thick, wood or metal
• Non fire rated hardware
• Projections: 2-3/4" maximum
• Strike: 4188 mortised top, 2130 bottom standard
• Deadlocking latchbolt standard in top latch
• Latch retention hold standard in top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Clean design with no exposed screws or rivets on the back of the device
• Vertical rods: Furnished to length based on 40-1/4" horizontal CL to finished floor and a 7'0" door.
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
