Product Description

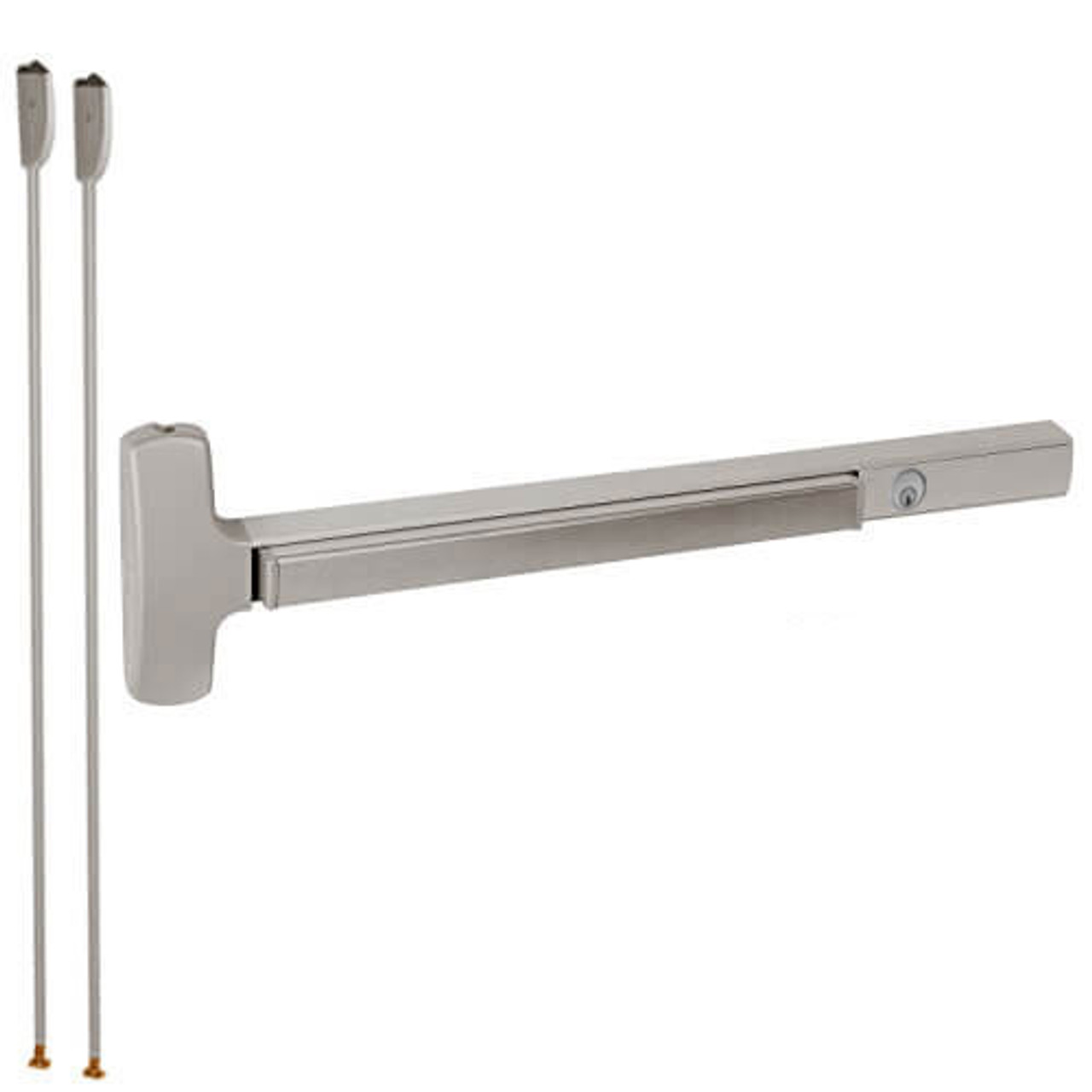

CD25-V-EO-US32D-2 Falcon 25 Series Exit Only Surface Vertical Rod Devices in Satin Stainless Steel Finish

This device is for a 24" door

The Falcon CD25-V-EO-US32D-2 surface vertical rod is used for high traffic applications that demands the added strength and protection that comes with vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. This series are certified to ANSI A156.3-2001 Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• Handing: Field reversible
• Includes no trim
• Latchbolt: Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw
• Cylinder dogging: Uses 1-1/8" long mortise cylinder with standard cam
• Device lengths: 2 feet (24 inch)
• Doors: 1-3/4" thick, wood or metal
• Projections: 2-3/4" maximum

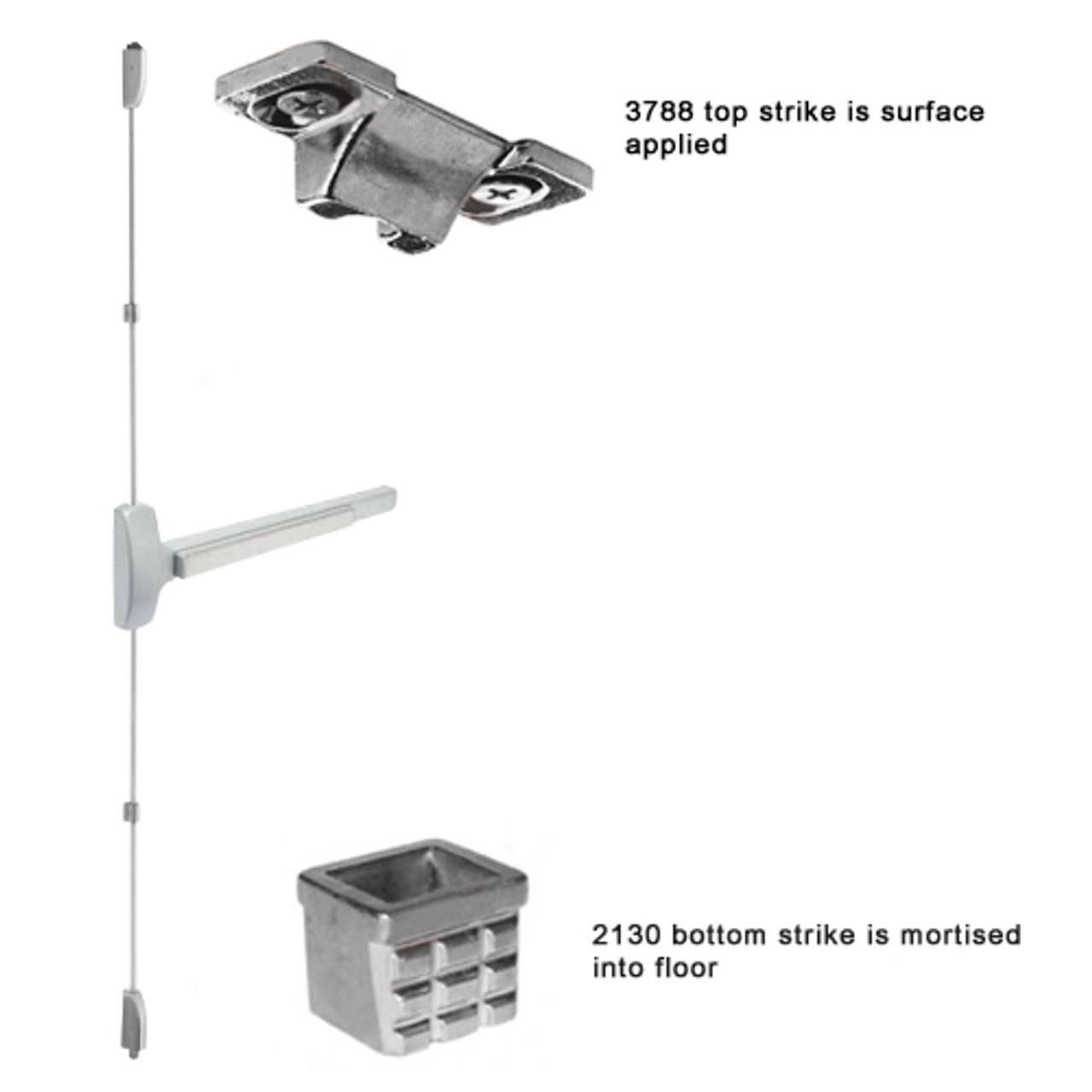

• Strike: 3788 top strike is surface applied. 2130 bottom strike is mortised into floor.
• Deadlocking latchbolt standard in top latch
• Fasteners: All mounting screws are concealed
• Non fire rated hardware
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
