Product Description

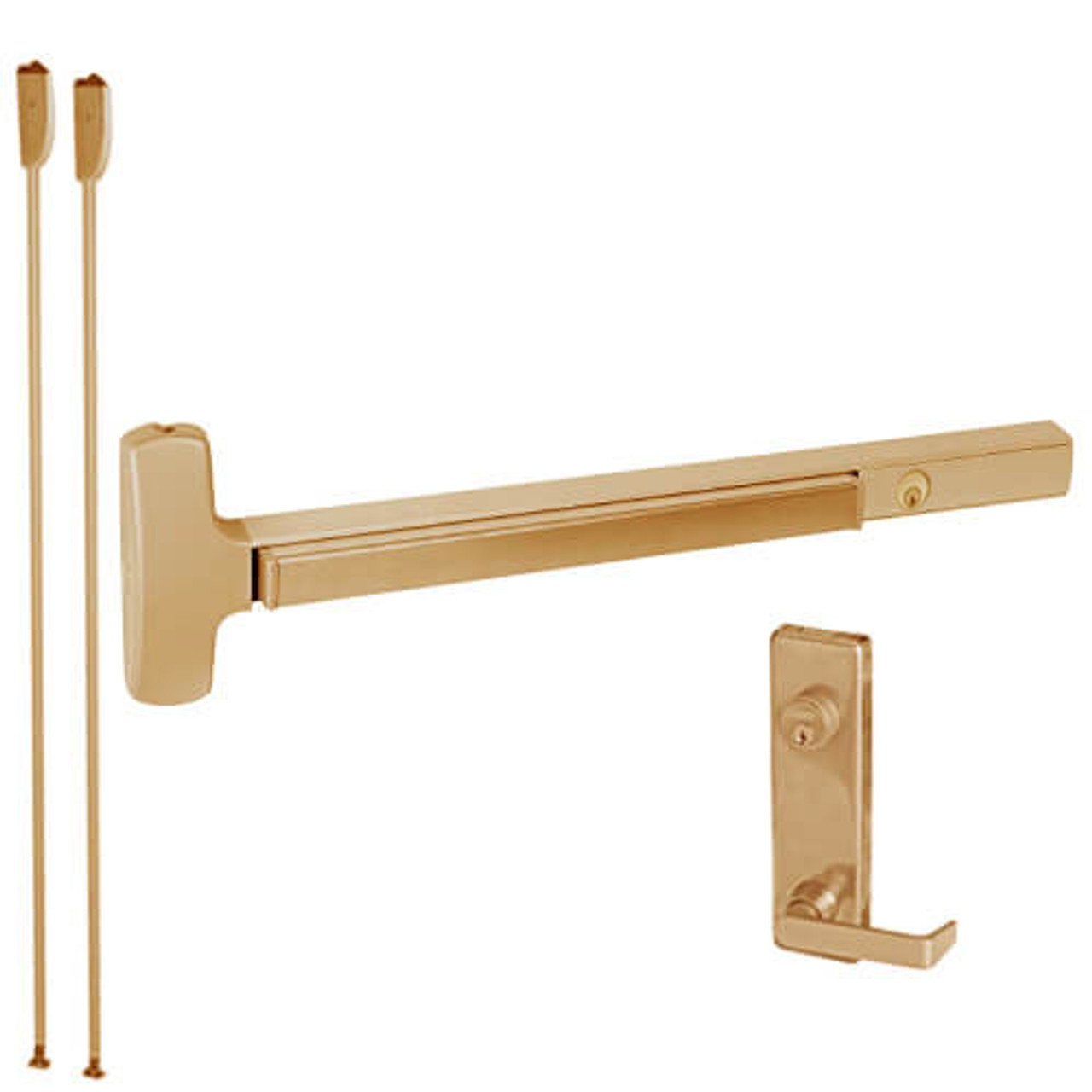

CD25-V-L-NL-DANE-US10-3-LHR Falcon 25 Series Surface Vertical Rod Devices 510L Dane Lever with Night Latch Trim in Satin Bronze Finish

This device is for a 36" door

The Falcon CD25-V-L-NL-DANE-US10-3-LHR surface vertical rod is used for high traffic applications that demands the added strength and protection that comes with vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. This series are certified to ANSI A156.3-2001 Grade 1.

Features and Benefits:

• Satin Bronze finish
• Handing: Left handed
• 510L-NL Dane lever with night latch trim
• Latchbolt: Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw
• Cylinder dogging: Uses 1-1/8" long mortise cylinder with standard cam
• Device lengths: 3 feet (36 inch)
• Doors: 1-3/4" thick, wood or metal
• Projections: 2-3/4" maximum
• Strike: 3788 top strike is surface applied. 2130 bottom strike is mortised into floor.
• Deadlocking latchbolt standard in top latch
• Fasteners: All mounting screws are concealed
• Non fire rated hardware
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
