Product Description

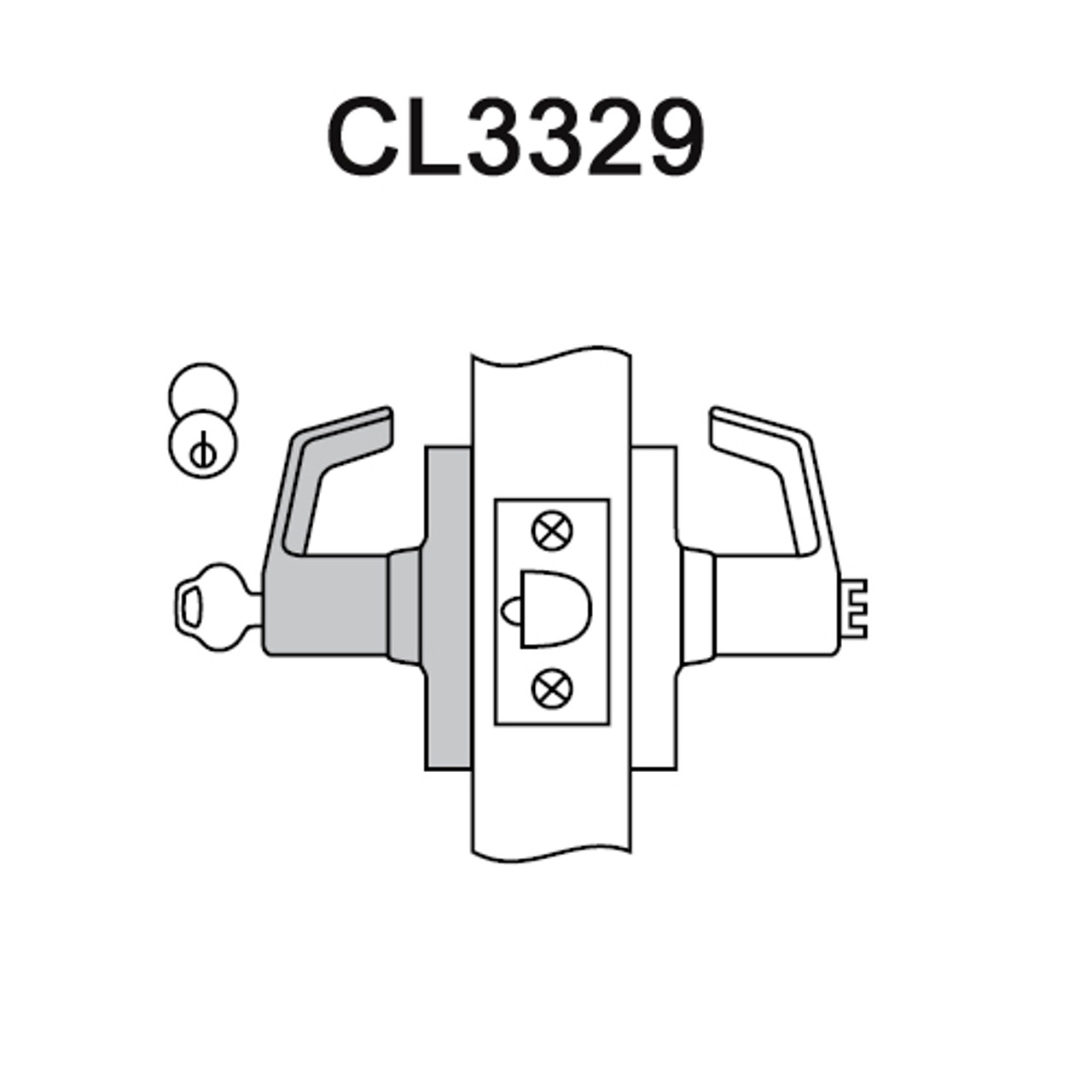

CL3329-NZD-606 Corbin CL3300 Series Extra Heavy Duty Hotel Cylindrical Locksets with Newport Lever in Satin Brass Finish
The Corbin CL3329-NZD-606 Extra heavy-duty cylindrical lockset is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 Series supplements any high-use commercial, industrial and institutional application. The Corbin Russwin CL3300 series engineered to meet today's increased security needs, offers several advantages. The CL3300 series are certified to the ANSI/BHMA A156.2 Series 4000 Grade 1.
Hotel: Throw-off latchbolt by lever inside or by key outside. Push button shuts out all keys except emergency key, and projects occupancy indicator in face of cylinder. Outside lever always locked. Not available with other manufacturers keyways.
Features and Benefits:
- Satin Brass finish
- Extra heavy duty cylindrical lever locksets
- Single cylinder
- Handing: Non-handed
- Cylinder: Brass, 6-pin, L4 keyway standard.
- Keys Two nickel silver keys are included
- Newport lever design with D rose (NZD)
- Door thickness: 1-3/4" (44mm) - 2" (51mm) standard
- Backset: 2-3/4" (70mm) standard
- Lock chassis: Steel, zinc dichromated for corrosion resistance.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
- Strike: ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
