Product Description
CL3359-AZD-619-CL6 Corbin CL3300 Series IC 6-Pin Less Core Extra Heavy Duty Storeroom or Public Restroom Cylindrical Locksets with Armstrong Lever in Satin Nickel Plated Finish
The Corbin CL3359-AZD-619-CL6 Extra heavy-duty cylindrical lockset is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 Series supplements any high-use commercial, industrial and institutional application. The Corbin Russwin CL3300 series engineered to meet today's increased security needs, offers several advantages. The CL3300 series are certified to the ANSI/BHMA A156.2 Series 4000 Grade 1.
Barrier free storeroom or public restroom: Deadlocking latchbolt by inside lever. Key outside unlocks outside lever to retract latchbolt. Key is retained in unlock mode. When key is removed outside lever is locked. Inside lever always free.
Features and Benefits:
- Satin Nickel Plated finish
- Extra heavy duty cylindrical lever locksets
- Single cylinder
- Handing: Non-handed
- 6-pin interchangeable core
- Core is not included

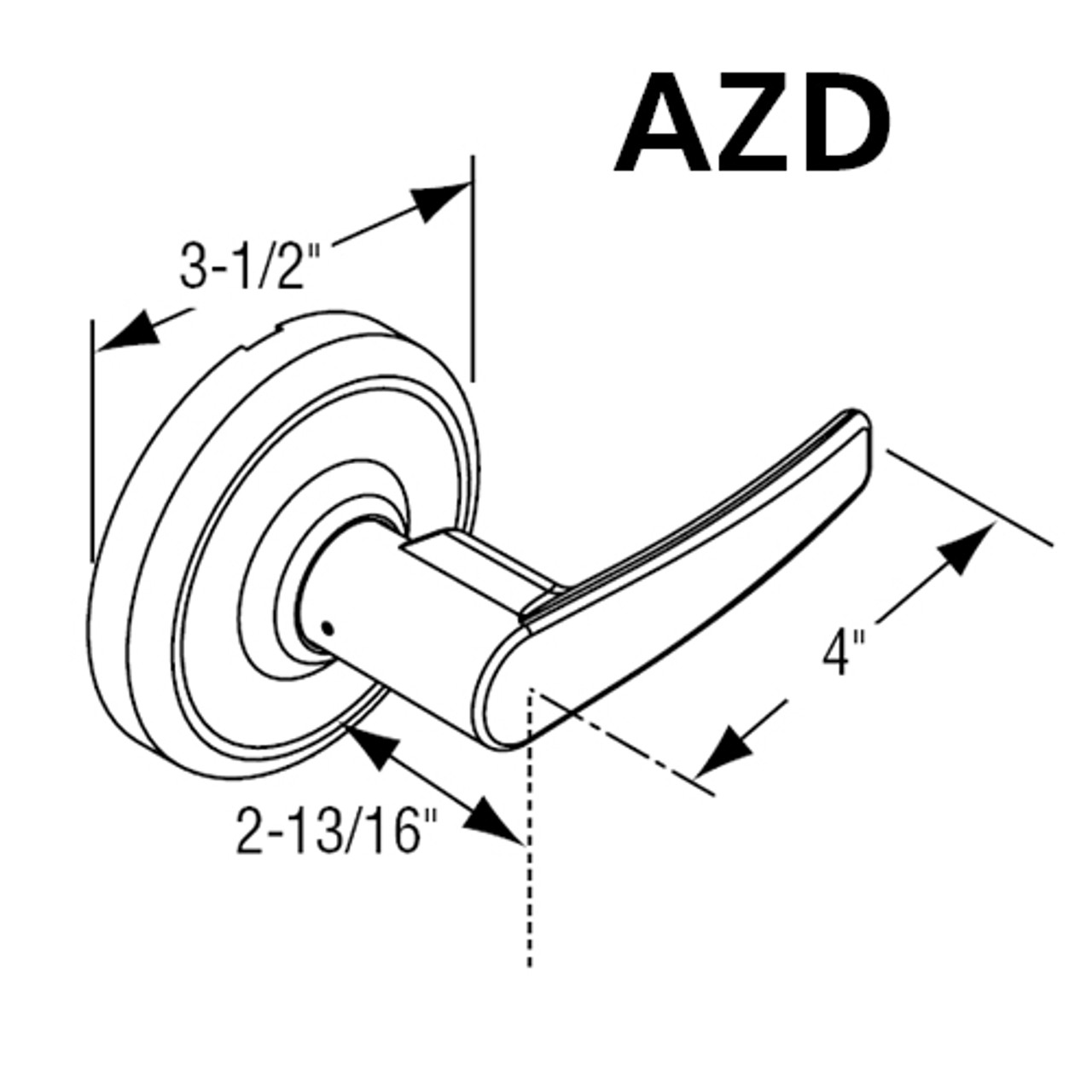

- Armstrong lever design with D rose (AZD)
- Door thickness: 1-3/4" (44mm) - 2" (51mm) standard
- Backset: 2-3/4" (70mm) standard
- Lock chassis: Steel, zinc dichromated for corrosion resistance.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
- Strike: ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
