Product Description

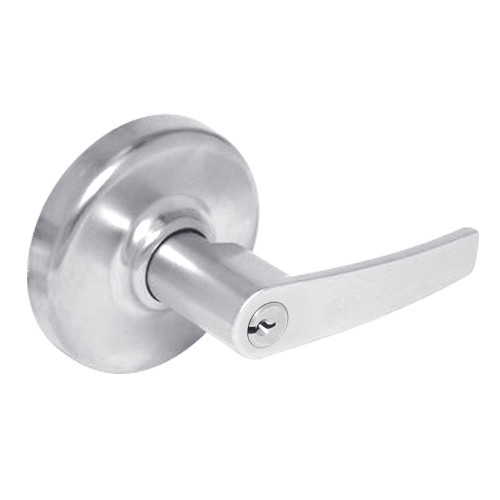

CL3362-AZD-625 Corbin CL3300 Series Extra Heavy Duty Communicating Cylindrical Locksets with Armstrong Lever in Bright Chrome Finish
The Corbin CL3362-AZD-625 Extra heavy-duty cylindrical lockset is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 Series supplements any high-use commercial, industrial and institutional application. The Corbin Russwin CL3300 series engineered to meet today's increased security needs, offers several advantages. The CL3300 series are certified to the ANSI/BHMA A156.2 Series 4000 Grade 1.
Communicating: Deadlocking latchbolt by lever either side, except when key in either lever locks and unlocks the lever independently of the other. Should be used only in office or room with multiple entries.
Features and Benefits:
- Bright Chrome finish
- Extra heavy duty cylindrical lever locksets
- Double cylinder lockset
- Handing: Non-handed
- Cylinder: Brass, 6-pin, L4 keyway standard.
- Keys: Two nickel silver keys are included
- Armstrong lever design with D rose (AZD)
- Door thickness: 1-3/4" (44mm) - 2" (51mm) standard
- Backset: 2-3/4" (70mm) standard
- Lock chassis: Steel, zinc dichromated for corrosion resistance.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
- Strike: ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
