Product Description

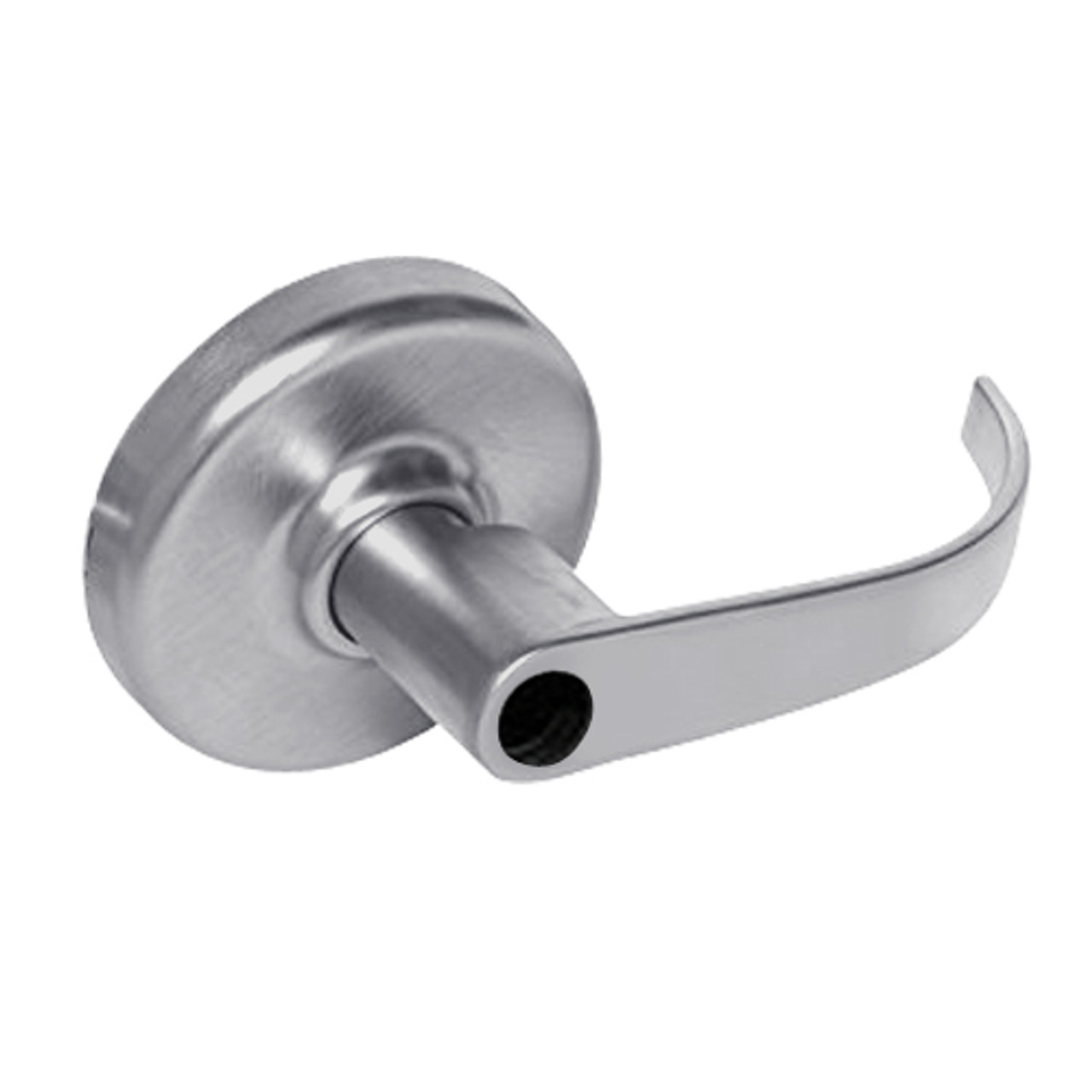

CL3375-PZD-626-LC Corbin CL3300 Series Less Cylinder Extra Heavy Duty Corridor/Dormitory Cylindrical Locksets with Princeton Lever in Satin Chrome Finish
The Corbin CL3375-PZD-626-LC Extra heavy-duty cylindrical lockset is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 Series supplements any high-use commercial, industrial and institutional application. The Corbin Russwin CL3300 series engineered to meet today's increased security needs, offers several advantages. The CL3300 series are certified to the ANSI/BHMA A156.2 Series 4000 Grade 1.
Corridor/ Dormitory Lock: Throw-off latchbolt by lever either side except when pushbutton or key locks outside lever. Pushbutton released by turning inside lever or by closing door. Depressed pushbutton indicates door is locked. When outside lever is locked by key, it can only be unlocked by key. Inside lever always free.
Features and Benefits:
- Satin Chrome finish
- Extra heavy duty cylindrical lever locksets
- Single cylinder
- Handing: Non-handed
- No cylinders are included with this lock
- Princeton lever design with D rose (PZD)
- Door thickness: 1-3/4" (44mm) - 2" (51mm) standard
- Backset: 2-3/4" (70mm) standard
- Lock chassis: Steel, zinc dichromated for corrosion resistance.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
- Strike: ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
