Product Description

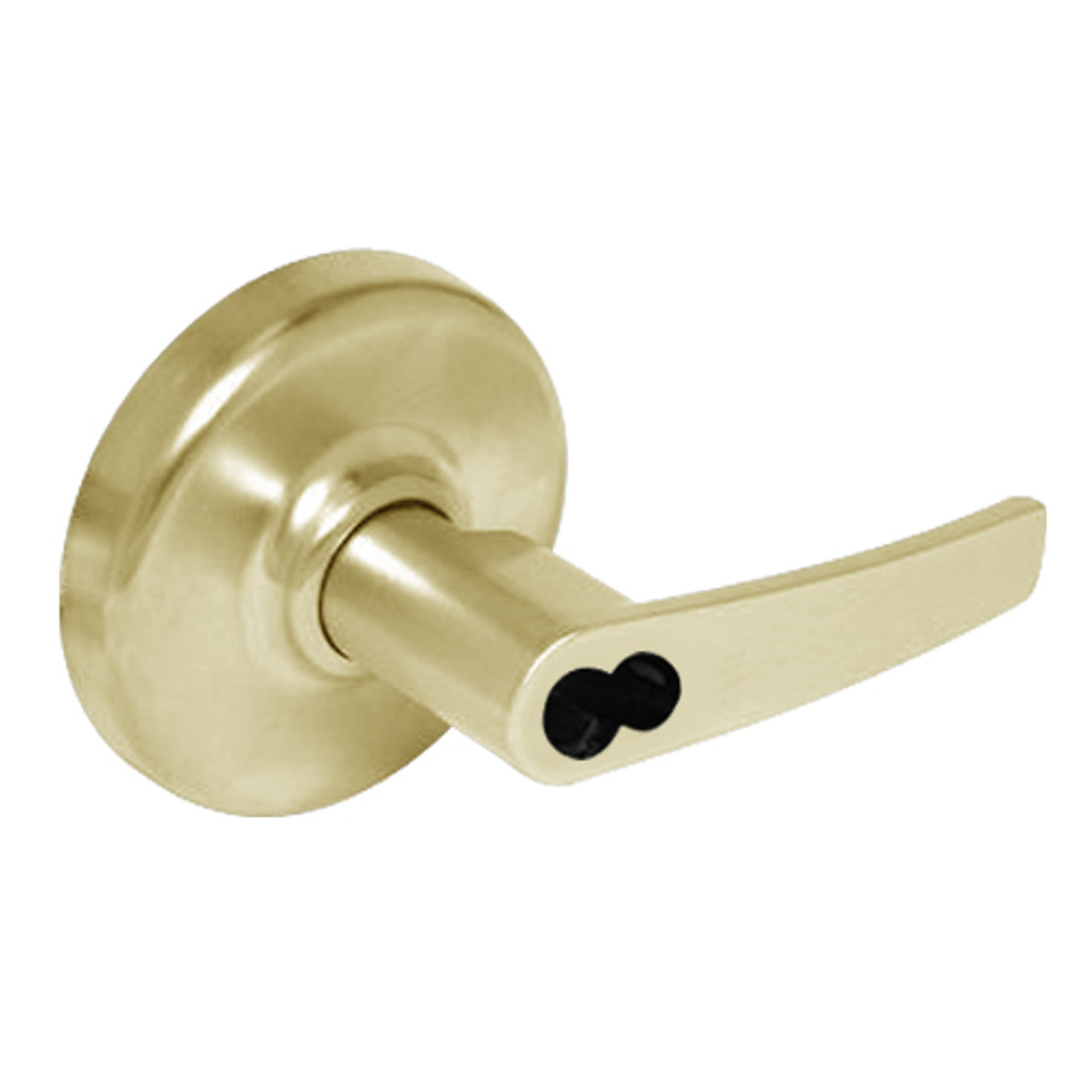

CL3393-AZD-606-CL6 Corbin CL3300 Series IC 6-Pin Less Core Extra Heavy Duty Service Station Cylindrical Locksets with Armstrong Lever in Satin Brass Finish
The Corbin CL3393-AZD-606-CL6 Extra heavy-duty cylindrical lockset is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 Series supplements any high-use commercial, industrial and institutional application. The Corbin Russwin CL3300 series engineered to meet today's increased security needs, offers several advantages. The CL3300 series are certified to the ANSI/BHMA A156.2 Series 4000 Grade 1.
Service station: Throw-off latchbolt by lever. Outside lever locked by slotted push button. When slotted push button is pushed in and turned, outside lever becomes freewheeling and deadlocking latch is activated. Outside lever is unlocked by using key or by rotating inside lever, when slotted push button returned to original position.
Features and Benefits:
- Satin Brass finish
- Extra heavy duty cylindrical lever locksets
- Single cylinder
- Handing: Non-handed
- 6-pin interchangeable core
- Core is not included
- Armstrong lever design with D rose (AZD)
- Door thickness: 1-3/4" (44mm) - 2" (51mm) standard
- Backset: 2-3/4" (70mm) standard
- Lock chassis: Steel, zinc dichromated for corrosion resistance.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
- Strike: ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
