Product Description

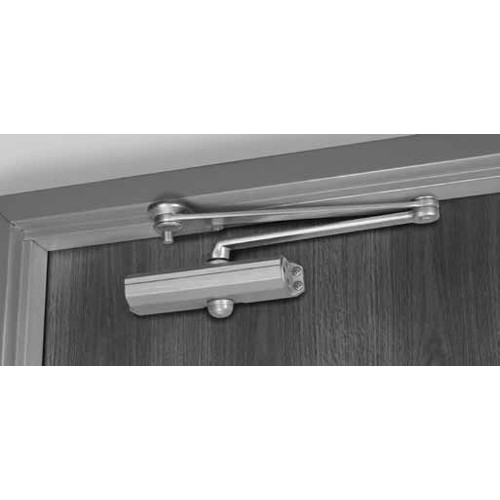

CLP1601T-696 Norton 1600 Series Hold Open Adjustable Door Closer with CloserPlus Arm in Satin Brass Painted Finish
The Norton CLP1601T-696 is a surface mounted commercial door closer with separate and independent, latch, sweep and backcheck intensity valves, Tri-Style packaging. The 1600 series door closer is an ideal for use with aluminum storefront doors and frames. This multi-sized, universal mounting commercial grade door closer combines rugged durability, optimum control of swinging doors and a complete range of spring power adjustment. These ANSI/BHMA Grade 1 door closers are designed for exterior or interior doors.
The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. The CloserPlus arm is similar to the Parallel Rigid arm, this arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments.
Features and Benefits:
- Satin Brass Painted finish
- Handing: Non handed
- Hold open
- Rack and pinion design
- Cast aluminum body
- 2-7/8" (73mm) projection
- 1-3/8" (35mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Barrier free (adjustable sizes 1 thru 6)
- CloserPlus arm
- Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
