Product Description

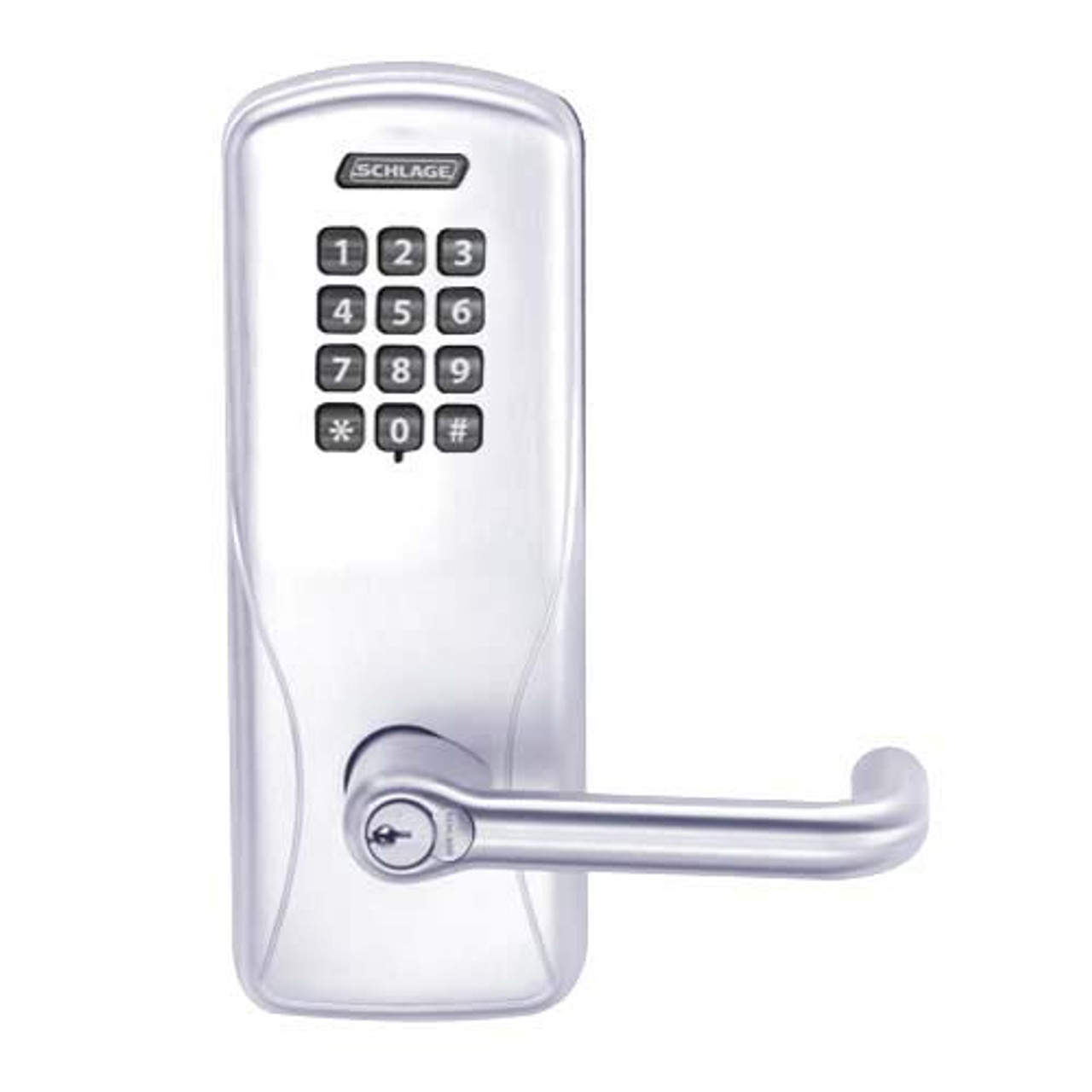

CO100-MS-70-KP-TLR-RD-625 Schlage Classroom/Storeroom Mortise Keypad Reader Tubular Lever Prepped for Everest FSIC in Bright Chrome Finish
The Schlage CO100-MS-70-KP-TLR-RD-625 series of standalone mortise electronic locks provides higher convenience and security. Our standalone electronic locks series has an ANSI/BHMA A156.25, Grade 1 rating and UL 294 which is the standard for electronic access control systems. Every schlage standalone electronic lock undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage standalone electronic locks series are the toughest electrical lock that gives you premium durability and performance in a lock which is easy to install and maintain. This is an offline lock that is manually programmable.
Features and Benefits:
- Bright Chrome finish
- Tubular lever style
- Door thickness: 1-3/4" standard
- 4AA battery kit is included
- Control Keys for installation/removal of interchangeable cores are not included
- Standard pass keys are included
- Strike plate: 1-1/4" x 4-7/8" square corner and box; 1-3/16" lip length
- Backset and latchbolt: 2-3/4" backset, 3/4" throw latch
- Mortise lock armor front: 1-1/4" wide square corner, latch for MS
- Prepped for full size schlage core and includes the core
- 12-button keypad requires a three to six digit code to unlock the door
- ANSI/BHMA Grade 1 certified and UL 294 which is the standard for electronic access control systems
- Manually programmable only and valid toggle credentials on the exterior may be used to change to a passage or secured status
