Product Description

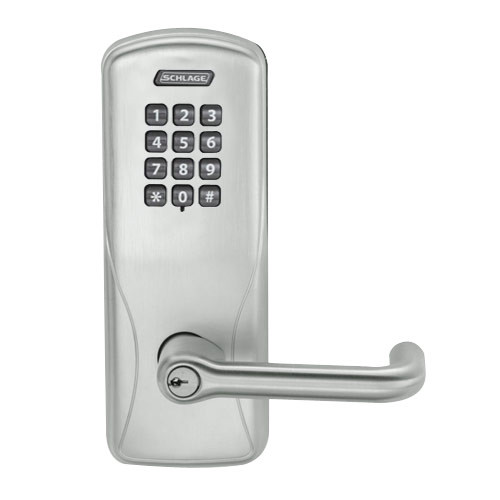

CO200-CY-70-KP-TLR-PD-619 Schlage Classroom/Storeroom Rights on Keypad Lock Tubular Lever in Satin Nickel Finish

The Schlage CO200-CY-70-KP-TLR-PD-619 series of standalone electronic locks provides higher facility and security of electronic access control without the cost or complexity of a fully networked system. Our standalone electronic locks series have an ANSI/BHMA A156.25, Grade 1 rating and UL 294 which is the standard for electronic access control systems. Every schlage standalone electronic lock undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage standalone electronic locks series are the toughest electrical lock that gives you premium durability and performance in a lock which is easy to install and maintain. This is a computer or manually programmable with users rights stored on the lock.

Features and Benefits:

• Satin Nickel finish
• Tubular lever style
• Door thickness: 1-3/4" standard
• Standard keys are included
• 4AA battery kit is included
• The Schalge CO200 series have ability to add and delete users at the lock
• Strike plate: 1-3/16" Lip, ANSI, no box, 1-1/14" x 4-7/8"
• Computer programmable with audit trail
• Backset and latchbolt: 2-3/4" backset, deadlatch, square corner, 1-1/8" x 2-1/4"
• Bored lock installed into a round hole in the door
• Everest 29 S123, 6 pin key in lever Full Cylinder
• 12-button keypad requires a three to six digit code to unlock the door
• Max current requirement: Up to 250 mA
• Valid toggle credentials on the exterior may be used to change to a passage or secured status
• ANSI/BHMA Grade 1 certified and UL 294 which is the standard for electronic access control systems
• Manually and computer programmable and lockset is normally secure, inside lever always allows free egress
