Product Description

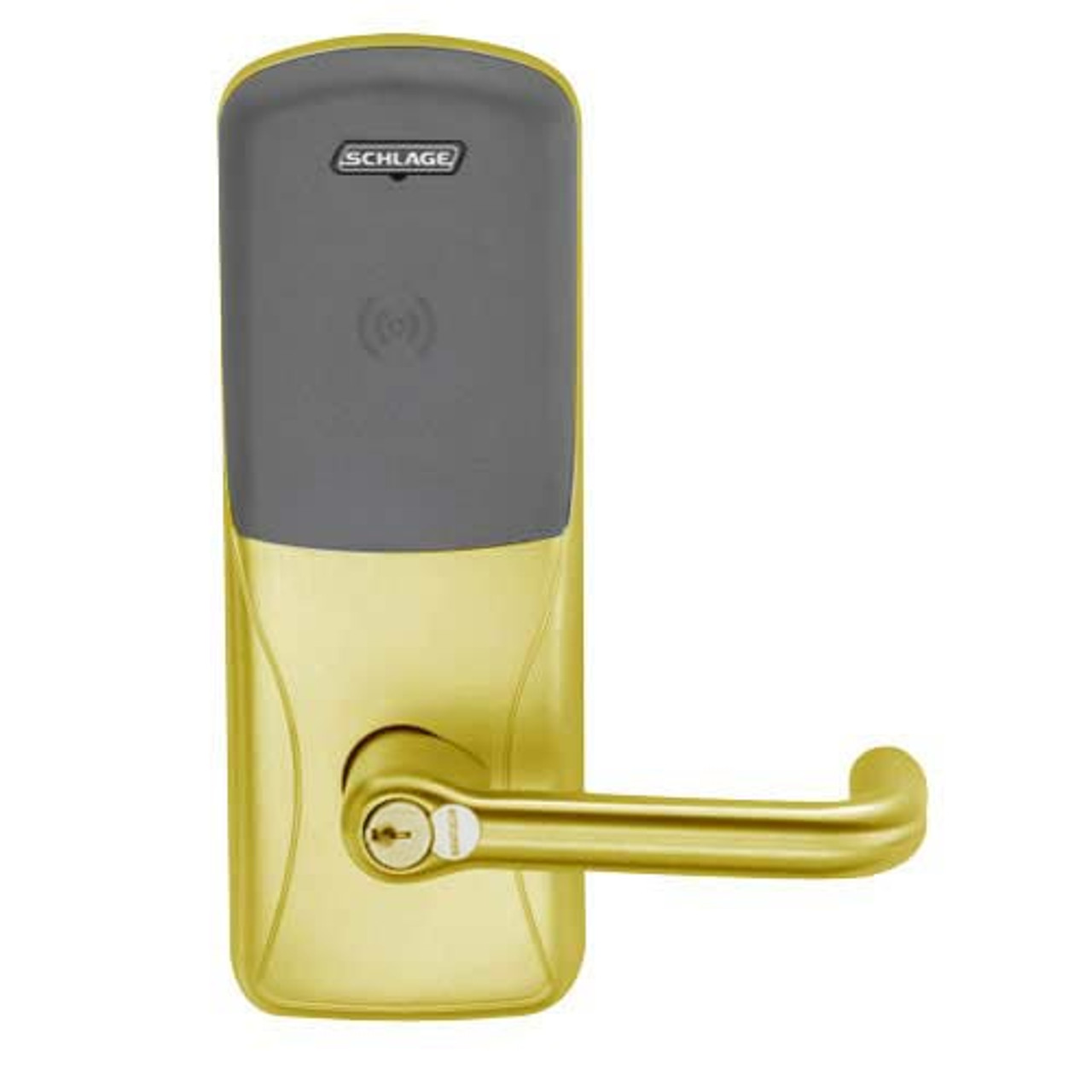

CO200-MS-70-PR-TLR-RD-606 Classroom/Storeroom Rights on Mortise Proximity Lock Tubular Lever Prepped for Everest FSIC in Satin Brass Finish
The Schlage CO200-MS-70-PR-TLR-RD-606 series of standalone electronic locks provides higher facility and security of electronic access control without the cost or complexity of a fully networked system. Our standalone electronic locks series has an ANSI/BHMA A156.25, Grade 1 rating and UL 294 which is the standard for electronic access control systems. Every schlage standalone electronic lock undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage standalone electronic locks series are the toughest electrical lock that gives you premium durability and performance in a lock which is easy to install and maintain. This is a manually and computer programmable with users rights stored on the lock.
The Handheld device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.
Features and Benefits:
- Satin Brass finish
- Tubular lever style
- Handheld device HHD is not included
- Door thickness: 1-3/4" standard
- 4AA battery kit is included
- Standard pass keys are included
- Control Keys for installation/removal of interchangeable cores are not included
- The Schlage CO200 series have ability to add and delete users at the lock
- Strike plate: 1-3/16" lip, 11-1/4" x 4-7/8" square corner, box
- Computer programmable with audit trail
- Backset and latchbolt: 2-3/4" backset
- Lock case installed into a mortise rectangular "pocket" in the door
- Prepped for full size schlage core and includes the core.
- Reads 125 kHz proximity credentials
- 1-1/4" wide square corner, latch for mortise lock
- Max current requirement: Up to 250 mA
- Valid toggle credentials on the exterior may be used to change to a passage or secured status
- The CO200 series are certified to ANSI/BHMA Grade 1 and UL 294 which is the standard for electronic access control systems
- Manually and computer programmable and lockset is normally secure, inside lever always allows free egress
