Product Description

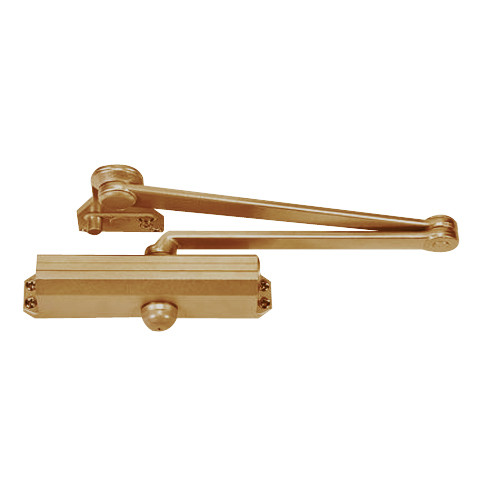

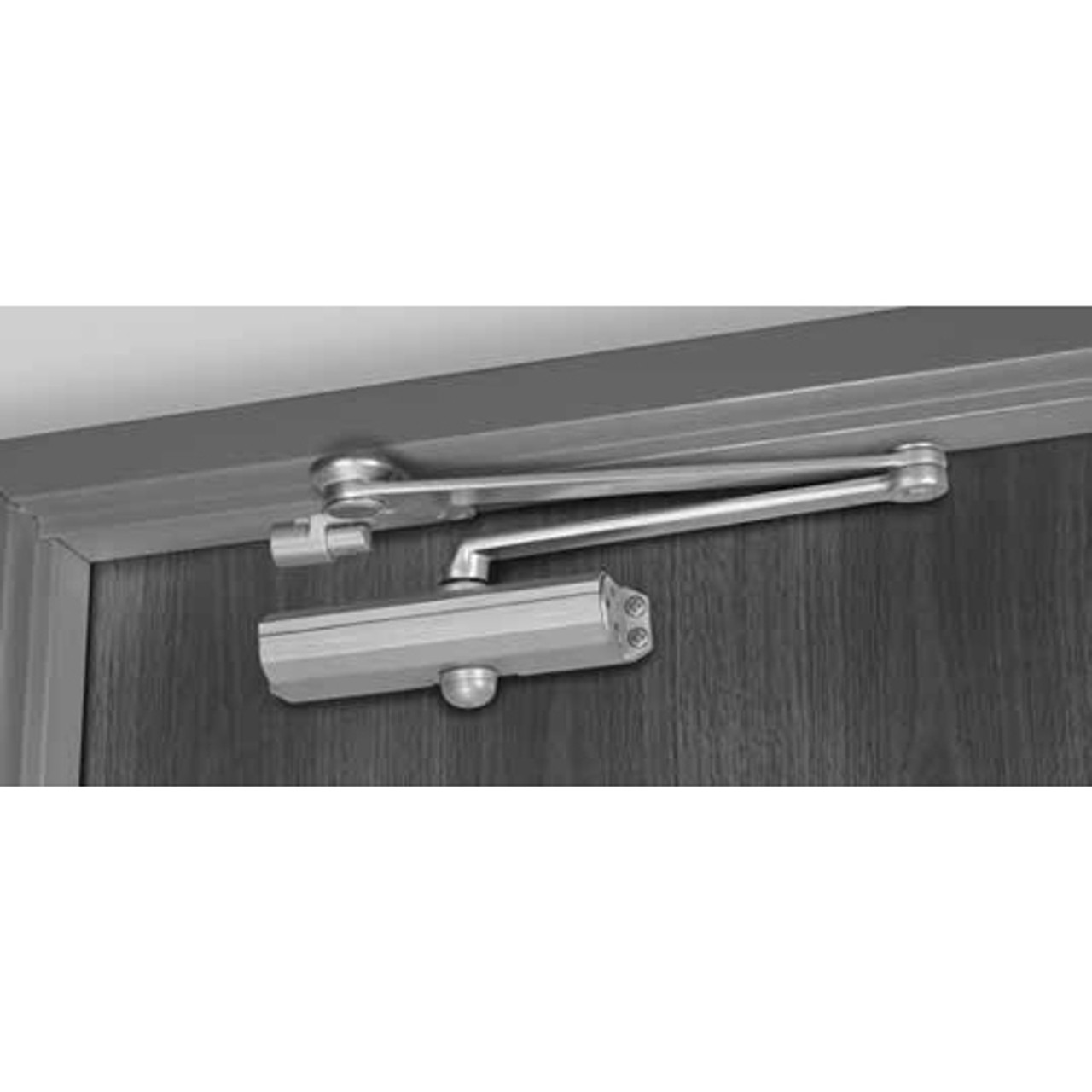

CPS1601T-691 Norton 1600 Series Hold Open Adjustable Door Closer with CloserPlus Spring Arm in Dull Bronze Finish

The Norton CPS1601T-691 is a surface mounted commercial door closer with separate and independent, latch, sweep and backcheck intensity valves, Tri-Style packaging. The 1600 series door closer is an ideal for use with aluminum storefront doors and frames. This multi-sized, universal mounting commercial grade door closer combines rugged durability, optimum control of swinging doors and a complete range of spring power adjustment. These ANSI/BHMA Grade 1 door closers are designed for exterior or interior doors.

This heavy-duty stop arm includes all the features of the CloserPlus arm, plus an added buffer spring that is compressed prior to the arm hitting the dead stop point. This greatly reduces the shock of the stopping action that occurs with the CloserPlus arm.

Features and Benefits:

• Dull Bronze finish
• Handing: Non handed
• Hold open
• Rack and pinion design
• Cast aluminum body
• Adjustable size 1 thru 6
• 2-7/8" (73mm) projection
• 1-3/8" (35mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• CloserPlus spring arm
• Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
