Product Description

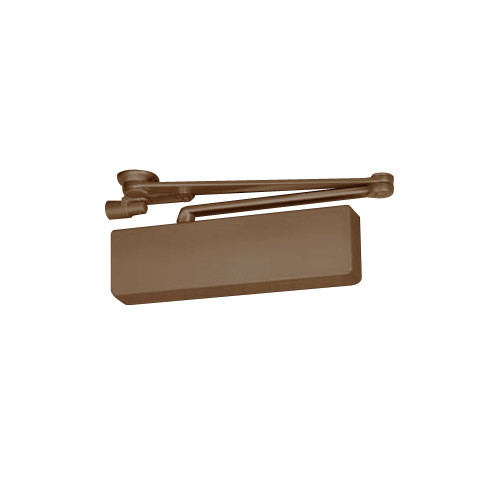

CPS7500M-691 Norton 7500 Series Non-Hold Open Institutional Door Closer with CloserPlus Spring Arm in Dull Bronze Finish

The Norton CPS7500M-691 non hold open door closer offers the ideal combination of superior performance, strength and quality. The 7500 Series door closer is the ideal for interior or exterior doors in facilities that demand reliability. This series are certified to ANSI/BHMA A156.4, Grade 1.

This arm has all of the characteristics of the CloserPlus arm with an additional steel buffer spring that provides greater protection at the end of the door opening cycle.

Features and Benefits:

• Dull Bronze finish
• Handing: Non handed
• Metal cover is included
• Non hold open
• Rack-and-pinion design
• Cast aluminum body
• Staked valves
• Adjustable spring sizes 1-6
• 2-3/16" (56mm) projection
• 1-1/2" (38mm) diameter piston
• Self-drilling screws
• Exceeds 25 million cycles (witnessed and verified by UL)
• Backcheck positioning valve
• CloserPlus arm
