CRR8802FL-606 Yale 8800FL Series Non-Keyed Mortise Privacy Locks with Carmel Lever in Satin Brass Finish

The Yale CRR8802FL-606 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

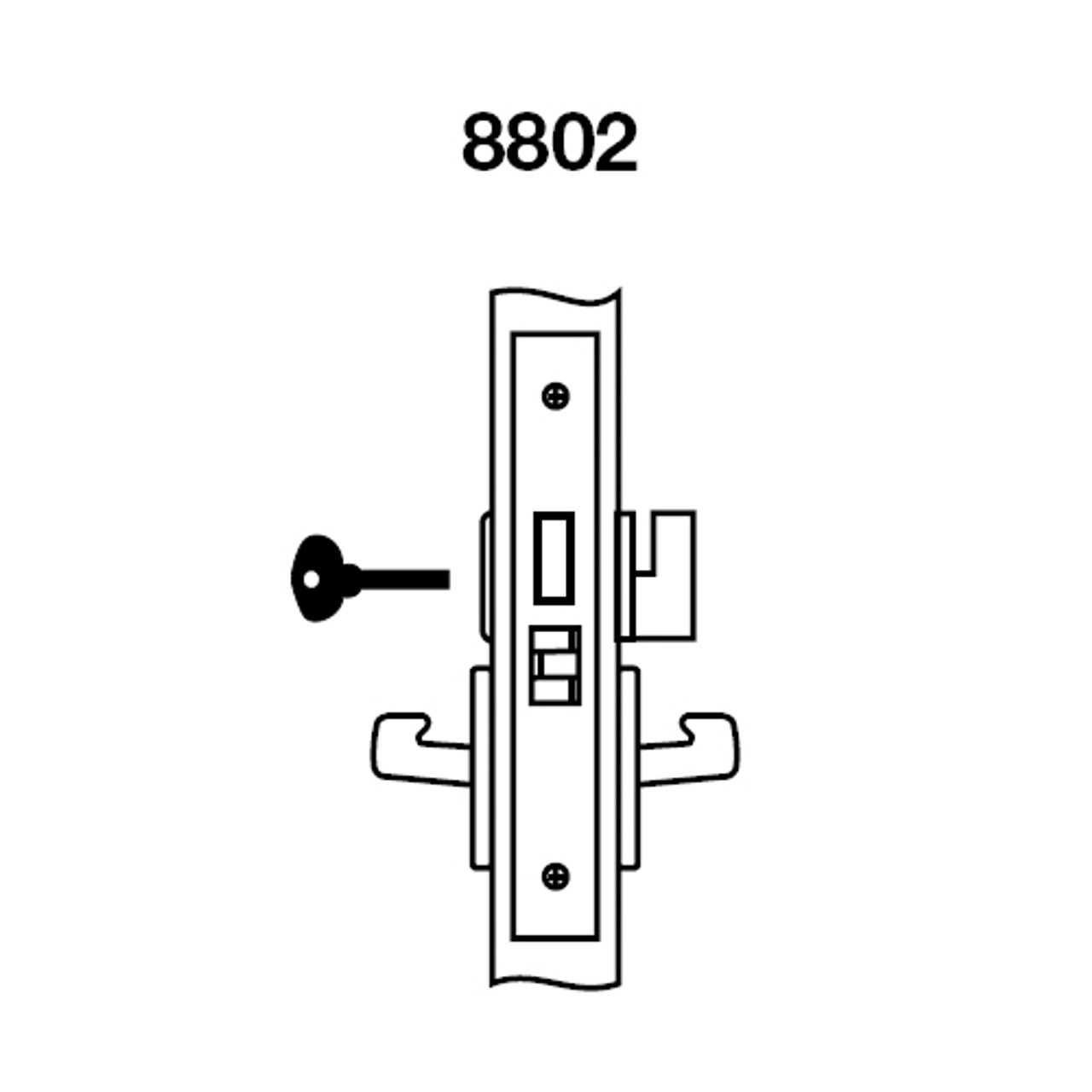

Privacy lock: Latchbolt retracted by lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever.

Features and Benefits:

• Satin Brass finish

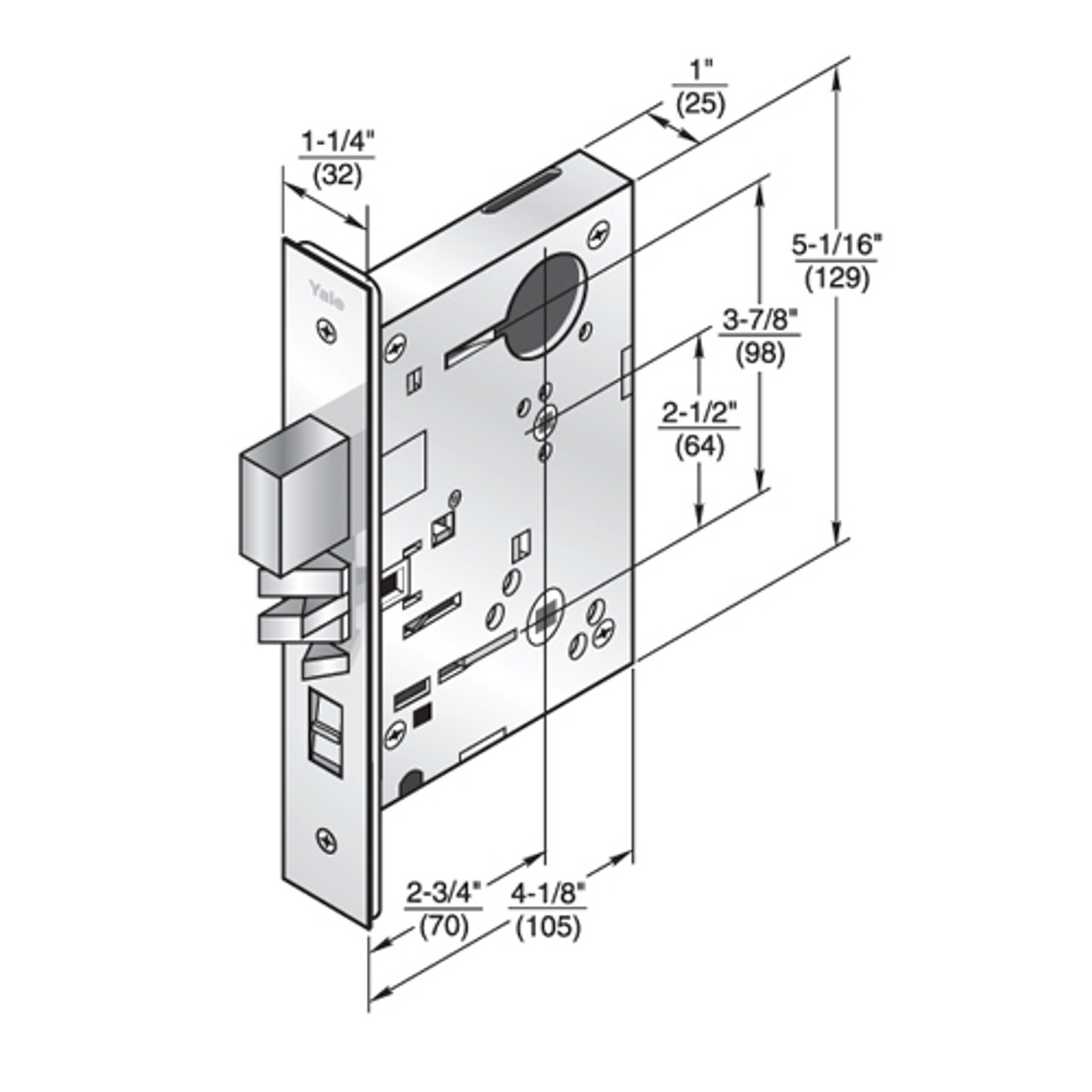

• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Non handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Non keyed lock
• Lever: Carmel lever design
• Rose: Copenhagen rose trim
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
