Product Description
CRR8864FL-630 Yale 8800FL Series Single Cylinder Mortise Bathroom Lock with Indicator with Carmel Lever in Satin Stainless Steel Finish
The Yale CRR8864FL-630 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Bathroom lock with indicator: Latchbolt retracted by key outside, lever inside. Occupancy indicator operated by thumbturn inside, key outside. When occupancy indicator shows OCC, key outside will operate occupancy indicator and retract latchbolt. Outside lever rigid at all times and Inside lever always active.
Features and Benefits:
- Satin Stainless Steel finish

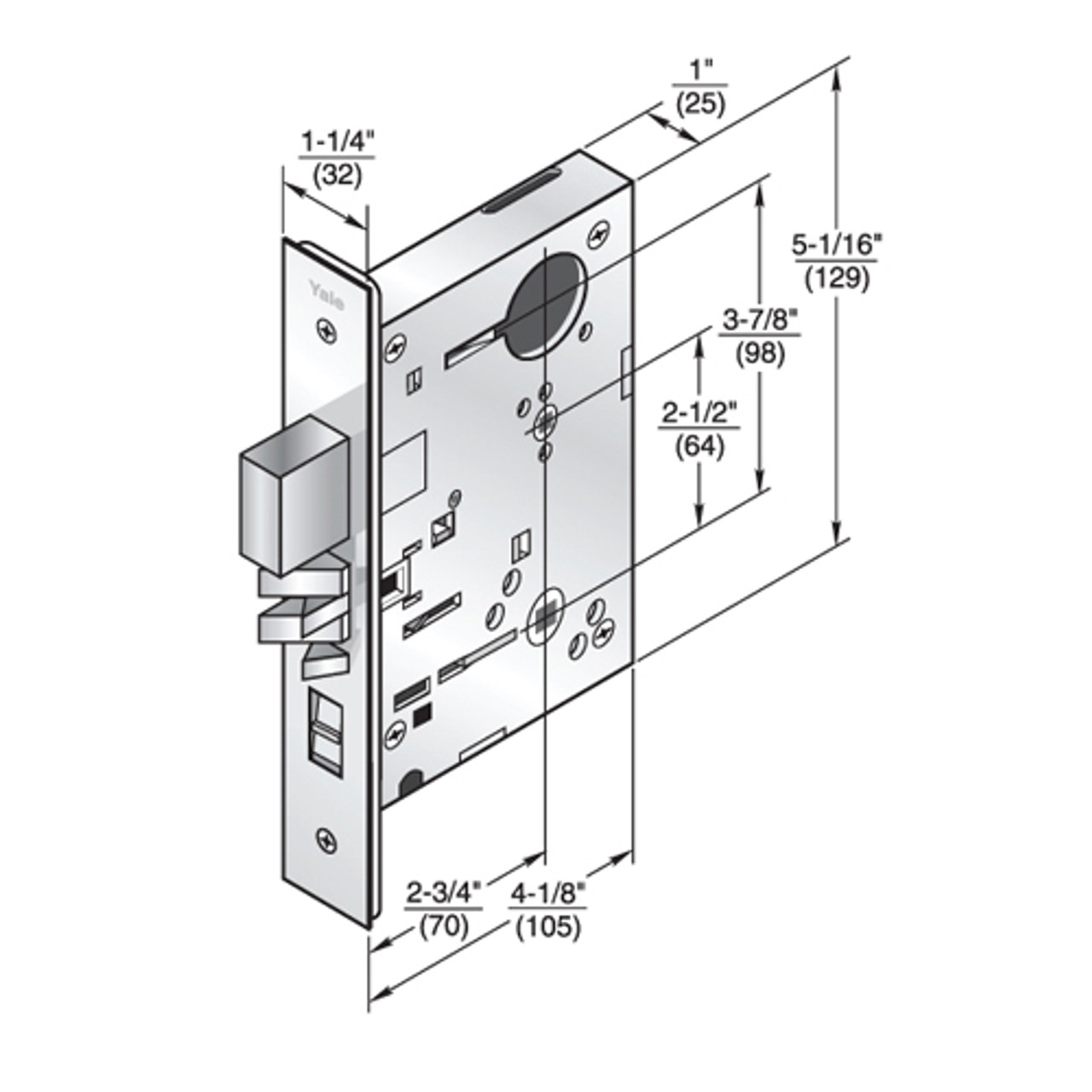

- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Non handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Single cylinder

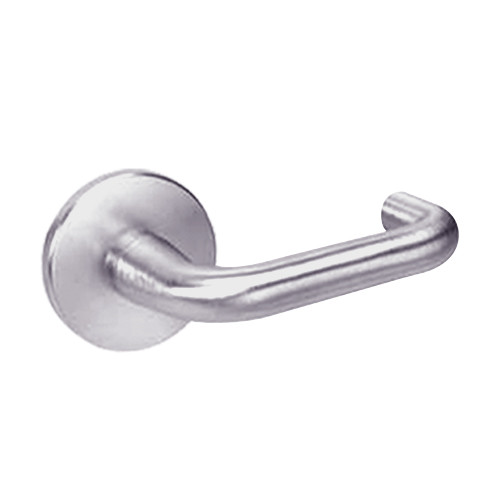

- Lever: Carmel lever design
- Rose: Copenhagen rose trim
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
