Product Description

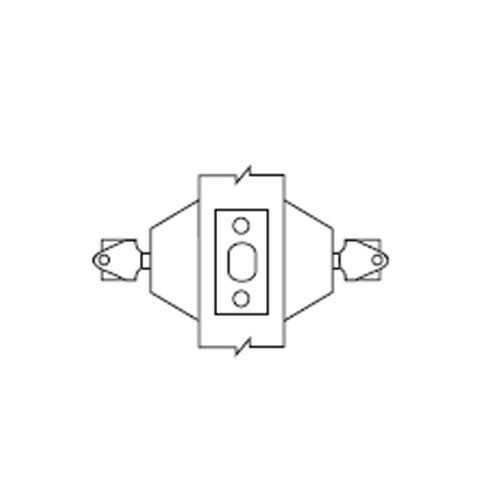

D62-10 Arrow Lock D Series Deadbolt Double Cylinder in Satin Bronze Finish

The Arrow Lock D62-10 D Series deadbolt is engineered to perform under the most extreme conditions where security is critical. This Grade 1 extra heavy duty deadbolt surpasses the demands of industrial, institutional and commercial applications. This series are certified to BHMA A156.5, Grade 1, UL Listed. The deadbolt is thrown or retracted by key from outside or key retracts and projects bolt inside turnpiece.

Features and Benefits:

• Satin Bronze finish
• Strike: 1-1/8" x 2-1/4" standard
• Latch: 2-3/4" backset, 1-1/8" front standard
• Cylinder: 6-pin, solid brass
• KD: Keyed different- 2 nickel-silver keys
• Non-handed
• ANSI: E0141
• Double cylinder
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
