Product Description

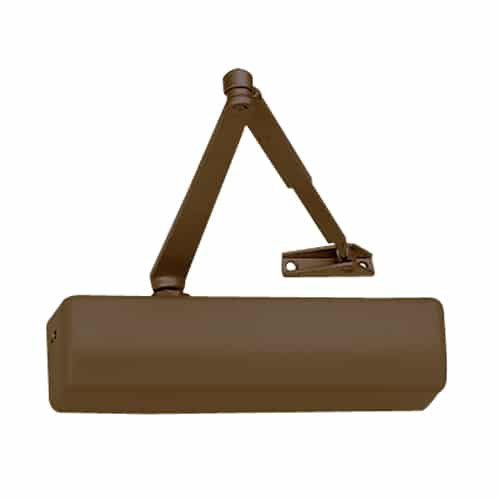

DC6200-A1-690-M54 Corbin 6000 Series Multi-Sized Regular Arm Door Closers with Hold Open Arm in Dark Bronze Finish
The Corbin DC6200-A1-690-M54 door closer series is the choice for retrofitting, quick installation, and longevity. The DC6000 Series Door Closer offers a full array of security features. Heavy-duty arms offer increased strength for high-use, high-abuse situations. This door closer series is ideal for schools, office buildings, health care facilities, and retail complexes. The DC6200 series meets ANSI/BHMA A156.4 Grade 1 requirements.
Regular arm mounting: Most common mounting, providing the greatest closing efficiency. Closer is mounted on the pull side, with the arm perpendicular to the face of the door. Arm bracket is attached to the door frame.
Features and Benefits:
- Dark Bronze finish
- Regular arm
- Spring power: Multi-sized; fully adjustable 1 through 6.
- Handing: Non handed
- Cover: Plastic V-O flame rated cover standard
- Up to full 180 degree door opening
- Mounting bracket: Quick-Install mounting bracket standard.
- Spindle: Heat-treated steel with a crowned gear set for increased efficiency.
- Hold open arm
- Sex nuts and bolts (SNB) is included
- Piston: 1-3/8" diameter; Precision machined, heattreated steel.
- Valves: Latching speed, closing speed and backcheck intensity valves standard.
- Fasteners: Self-drilling screws standard
