Product Description

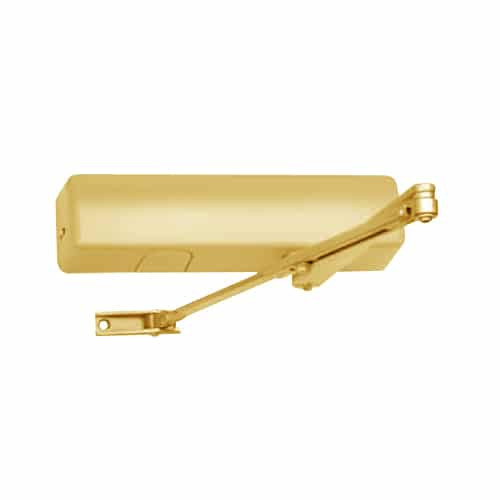

DC6422-696-M71 Corbin 6000 Series Half-Sized Top Jamb Arm Door Closers in Satin Brass Finish

The Corbin DC6422-696-M71 door closer series is the choice for retrofitting, quick installation, and longevity. The DC6000 Series Door Closer offers a full array of security features. Heavy-duty arms offer increased strength for high-use, high-abuse situations. This door closer series is ideal for schools, office buildings, health care facilities, and retail complexes. The DC6422 series meets ANSI/BHMA A156.4 Grade 1 requirements.

Top jamb mounting: Closer is mounted on the frame on the push side, with the arm perpendicular to the face of the door. Arm bracket is mounted on the door. Minimum 1-3/4" (44mm) top jamb required. Accommodates reveals up to 3-1/4" (83mm).

Features and Benefits:

• Satin Brass finish
• Top jamb arm
• Spring power: Size - 2; half-size adjustability
• Handing: Non handed
• Cover: Plastic V-O flame rated cover standard
• Up to full 180 degree door opening
• Mounting bracket: Quick-Install mounting bracket standard.
• Spindle: Heat-treated steel with a crowned gear set for increased efficiency.
• Non hold open standard
• Delayed action
• Piston: 1-3/8" diameter; Precision machined, heattreated steel.
• Valves: Latching speed, closing speed and backcheck intensity valves standard.
• Fasteners: Self-drilling screws standard
