Product Description

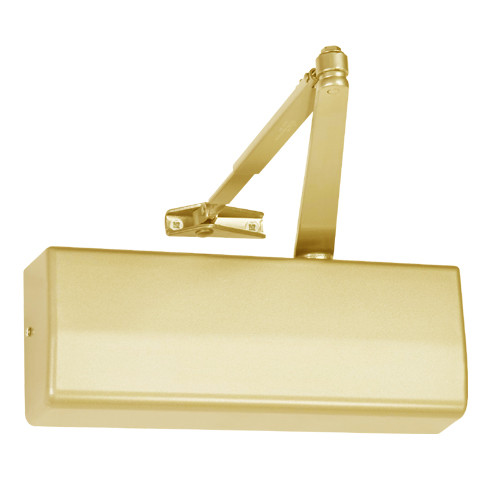

DC8200-696 Corbin DC8000 Series Regular Arm Heavy Duty Door Closers in Satin Brass Finish
The Corbin DC8200-696 heavy duty door closer series is the perfect choice for high-use openings that must meet ADA requirements. A variety of arms, finishes and quality features make the easy-to-install. This door closer series is ideal for schools, office buildings, health care facilities and retail complexes. The DC8200 series meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements. The DC8000 ensures quality and long-lasting performance.
Regular arm mounting: Most common mounting, providing the greatest closing efficiency. Closer is mounted on the pull side, with the arm perpendicular to the face of the door. Arm bracket is attached to the door frame.
Features and Benefits:
- Satin Brass finish
- Regular arm
- Spring power: Non-sized; fully adjustable 1 through 6.
- Handing: Non handed
- Cover: Full ABS cover standard
- Up to full 180 degree door opening
- Mounting bracket: Universal Quik-Install mounting bracket standard.
- Spindle: Cold-headed heat-treated steel.
- Non hold open standard
- Piston: 1-1/2" diameter; Precision machined, heat-treated steel.
- Valves: Latching speed, closing speed and backcheck valves standard.
- Fasteners: Self-drilling and machine screws standard
