Product Description

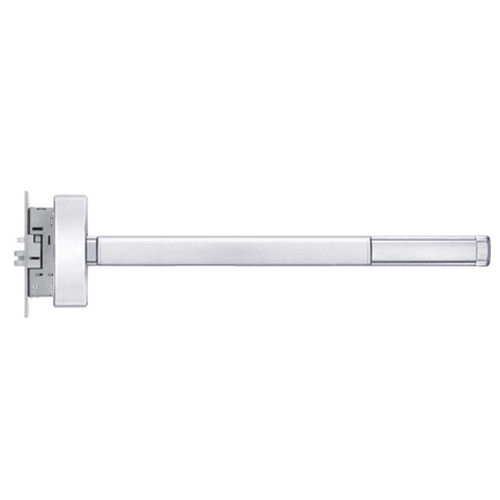

DEFL2302-RHR-625-48 PHI 2300 Series Fire Rated Apex Mortise Exit Device with Delayed Egress Prepped for Dummy Trim in Bright Chrome Finish
This device is for a 48" door
The PHI DEFL2302-RHR-625-48 Apex 2000 series exit device is used for all types of single and double doors and represents the ultimate in safety, security and simplicity. The APEX 2000 series provides smoother operation with minimal need for maintenance and durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. The Apex 2300 Series exit devices are UL listed for panic hardware and is certified to ANSI A156.3 Grade 1.
Features and Benefits:
- Bright Chrome finish
- Handing: Right hand reversible
- UL listed
- Electric Options: Delayed egress device 15 seconds
- Requires PS161-6 power supply
- Fire rated device
- Backset: 2-3/4"
- Door Size: 48" - 3'-1" to 4' door width
- Cylinder and trim is not included
- Prepped for exit only, dummy trim
- Latchbolt: Stainless steel, deadlocking, 3/4" throw, anti-friction.

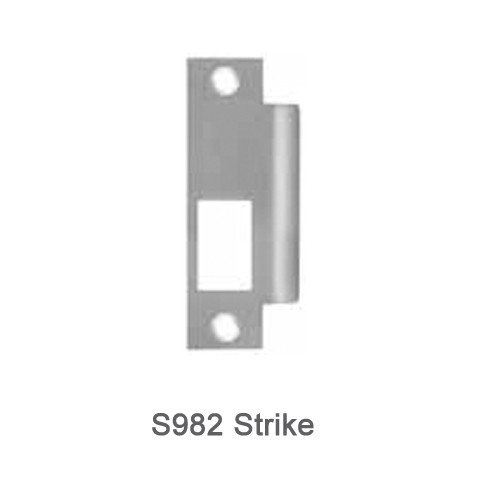

- Strike: S982, handed curved lip strike furnished standard.
- Dogging feature is not available
- Used for the wide stile door
- Touchbar height: 39-15/16"- from floor standard
