Product Description

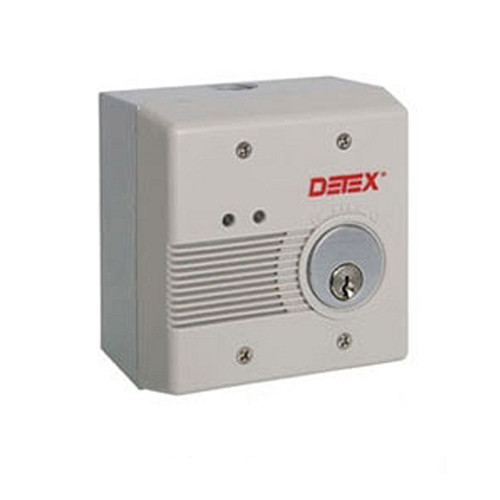

EAX-2500S Detex Exit Alarm

The Detex EAX-2500 is designed for applications that require a 9VDC battery or external AC/DC powered alarmed exit device on secured doors. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The EAX-2500, with it's smaller size and designed to fit in a standard 4"x4" outlet box makes it the choice for quick and easy installations on emergency exit and restricted doors.

Note: *No cylinders are included with this unit. A mortise cylinder is required to use this lock from inside. If you want to operate this lock from outside the door you will need to purchase a rim cylinder too.

Features and Benefits:

• Low-cost, door alarm with piezo horn that sounds to warn unauthorized use of a door.
• Surface and flush mount available. Easy to install using ordinary tools.
• Fits into a standard 4"x4" double switch/outlet box for both surface and flush installations.
• Now available with field selectable options.
• Available in gray and black.
• Patented cam assembly automatically adjusts for different sizes of cylinders without the use of spacers.
• Mortise cylinder required with standard Yale cam for Inside Key Control.
• Alarm can only be silenced by proper control key.
• Modern graphics on cover to demonstrate key rotation and operation.
• Improved electronic circuits for longer battery life, LED functions.
• 9VDC battery powered with optional AC/DC external power.
• Tamper switch monitors cover manipulation.
• Tamper resistant housing and cover protects electronics and battery from manipulation.
• Extended bypass, now a standard feature, allows alarm to remain bypassed when door is open and automatically rearm upon door closing.
• Custom settings may be ordered and programmed at the factory.
• Upgraded features are now included and field selectable.
• The EAX-2500 package includes:
• EAX-2500 Exit Alarm
• Peel & stick door sign
• Key Stop (formerly 90 degree detent)
• Technical Specifications:
• Approximate 100 dB piezo alarm
• Mortise cylinder key switch arming
• 9 VDC battery powered with optional AC/DC External power (12-24V)
• Low Battery Alert (field selectable- if AC used)
• Manual arming, disarming & rearming
• LED visual arming indicators
• Audible arming indicator
• Remote bypass compatible
• Alarm relay output
• Alarm accepts 5, 6 and 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam
• Field selectable 2 minute auto rearm
• Field selectable status indicators.
• Dimensions: 4.65" Wide x 4.60" Long x 3.11" Deep
