Product Description

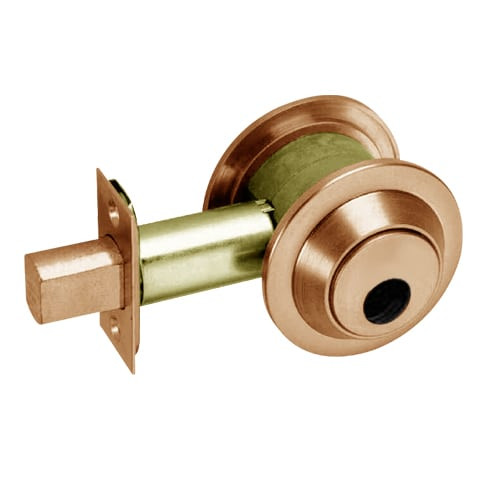

DL3011-612-LC Corbin DL3000 Series Cylindrical Deadlocks with Single Cylinder w/ Blank Plate in Satin Bronze Finish

The Corbin DL3011-612-LC series deadlock is a Grade 1 extra heavy duty cylindrical deadbolt lock. The DL3000 series is used for commercial, institutional, and industrial applications. This Deadbolt lock is ideal for Interior and exterior doors for schools/universities, hospitals/healthcare facilities, offices, retail, and government facilities.

Single cylinder with blank plate: By key one side only; opposite side blank.

Features and Benefits:

• Satin Bronze finish
• Grade 1 cylindrical deadlocks
• Single cylinder with blank plate
• Handing: Non handed
• No cylinders are included with this lock
• Door thickness: 1-3/4" to 2-1/4"
• Backset: 2-3/4" (70mm) standard
• Strike: Wrought brass or bronze 2-3/4" x 1-1/8" with wrought box
• Front: Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
