Product Description

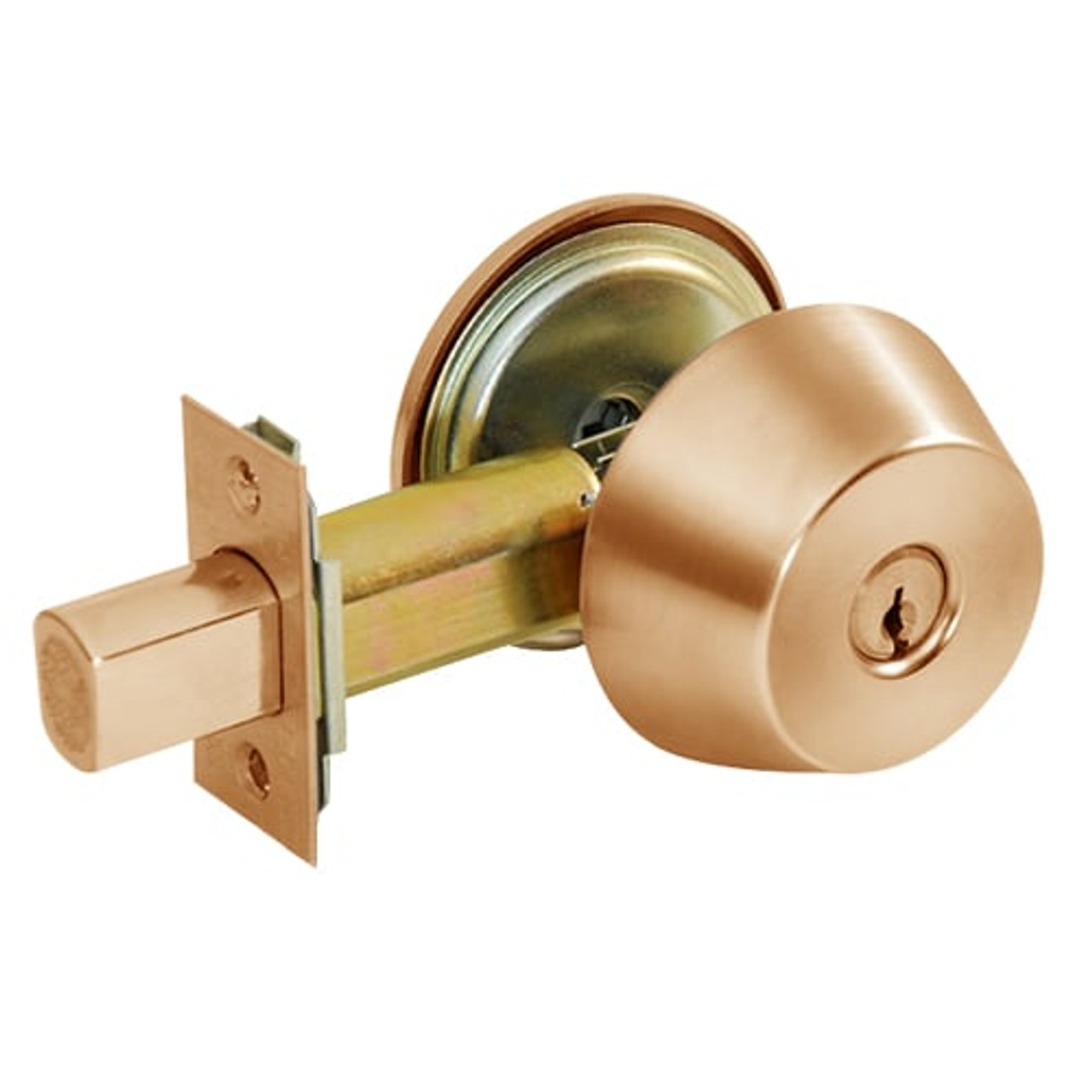

DL3213-612 Corbin DL3200 Series Cylindrical Deadlocks with Single Cylinder in Satin Bronze Finish

The Corbin DL3213-612 series deadlock is a Grade 1 cylindrical deadlock which provides an outstanding combination of value and performance. The DL3200 series is the ideal for standard commercial applications. The DL3200 series are certified to the ANSI/BHMA A156.5, Grade 1.

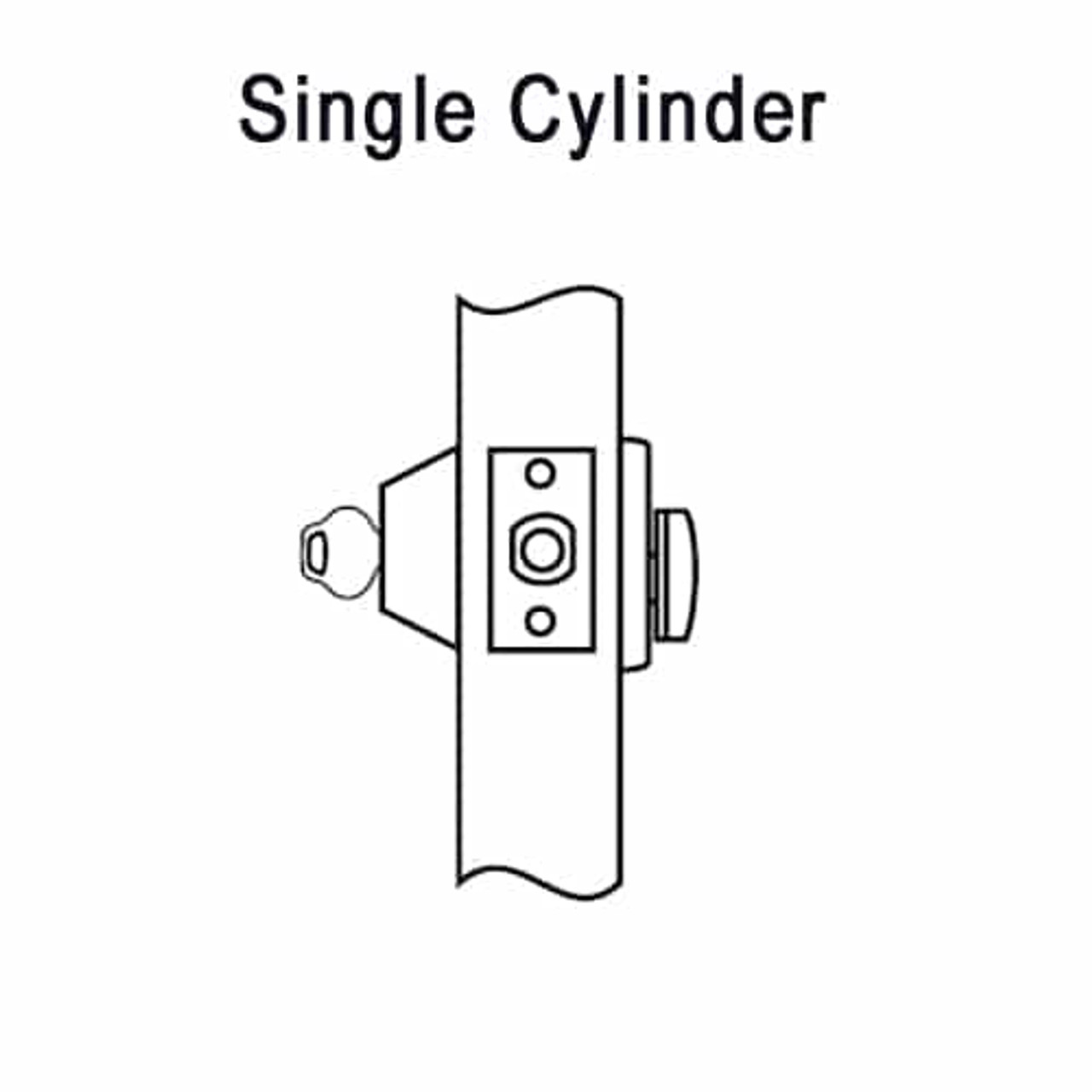

Single cylinder: By key outside and by thumbturn inside.

Features and Benefits:

• Satin Bronze finish
• Grade 1 cylindrical deadlocks
• Single cylinder
• Handing: Non handed
• Keys: Two nickel silver key standard
• Door thickness: 1-3/8" to 2-1/4"
• Backset: 2-3/4" (70mm) standard
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted.
• Strike: Standard; 2-3/4" (70mm) x 1-1/8" (29mm).
• Front: Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
