Product Description

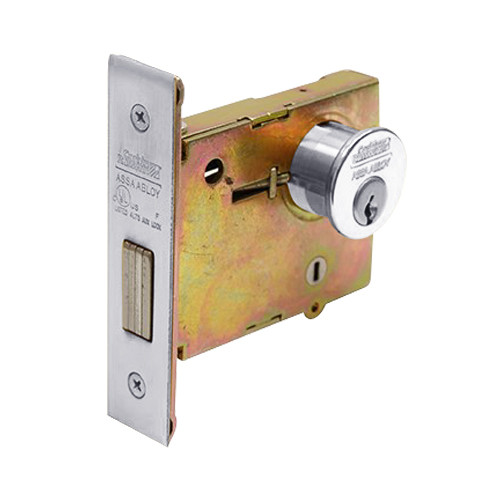

DL4113-605 Corbin DL4100 Series Mortise Deadlocks with Single Cylinder in Bright Brass Finish

The Corbin DL4113-605 series deadlock is a Grade 1 extra heavy duty mortise deadbolt lock. The DL4100 series is used for commercial, institutional, and industrial applications. This Deadbolt lock is ideal for Interior and exterior doors for schools/universities, hospitals/healthcare facilities, offices, retail, and government facilities.

Single cylinder: By key outside and by thumbturn inside.

Features and Benefits:

• Bright Brass finish
• Grade 1 mortise deadlocks
• Single cylinder
• Handing: Non handed
• Keys: Two nickel silver key standard
• Door thickness: 1-3/4"(44mm) standard
• Backset: 2-3/4" (70mm) standard
• Cylinder: Standard - 6-pin, L4 keyway, 0-bitted.
• Strike: Wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm) standard
• Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm).
• Deadbolt: Steel with hardened pin; 1" (25mm) throw.
